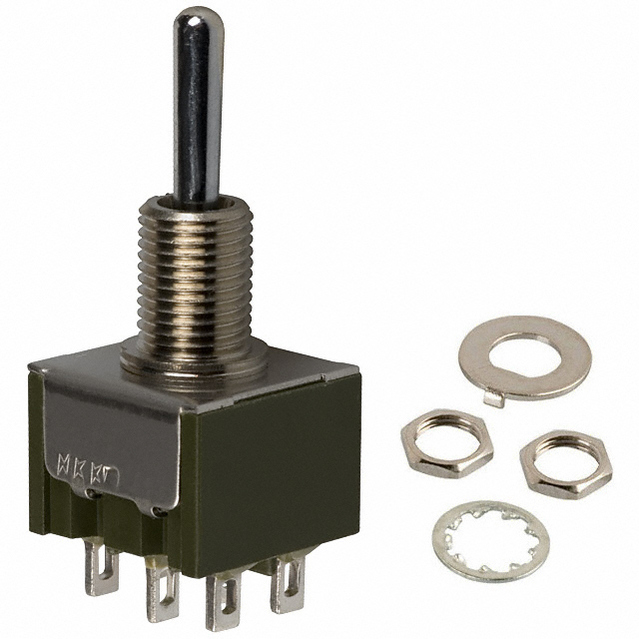

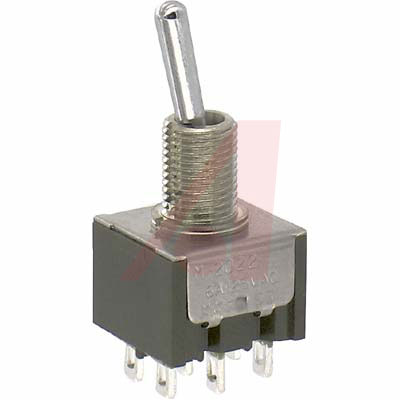

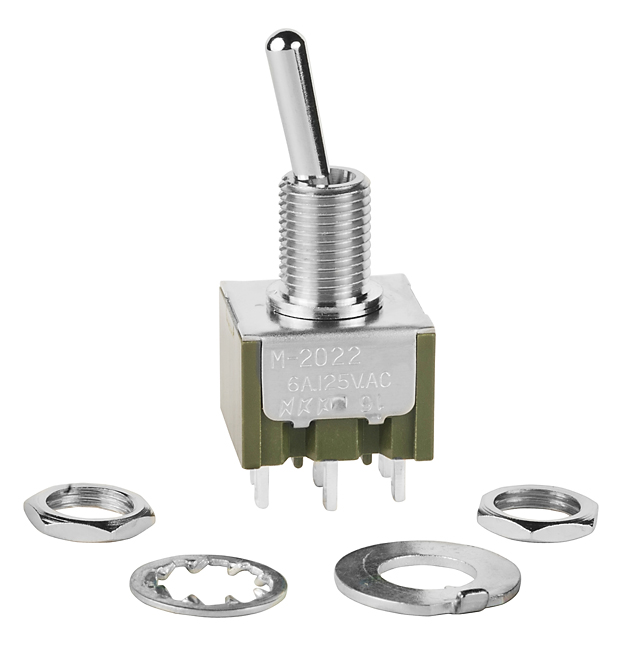

NKK SWITCHES M2022SS1W01 拨动开关, M系列, 不发光, DPDT, 开-无-开, 面板, 6 A
The M series Miniature Toggle Switch available in 1 to 4-pole bushing and PCB-mount. The anti-jamming design on toggle switches protects contacts from damage due to excessive downward force on the actuator. High torque bushing construction prevents rotation or separation from frame during installation. High insulating barriers increase isolation of circuits in multi-pole devices and provide added protection to contact points. The moulded diallyl phthalate case, epoxy sealed terminals prevent entry of solder flux and other contaminants. Prominent external insulating barriers increase insulation resistance and dielectric strength.
触点电镀 Silver
额定电压DC 30 V
接触器类型 Standard
额定电压AC 125 V
额定电流 6 A
绝缘电阻 1000 MΩ
排数 2
方向 Vertical
触点类型 DPDT
易燃性等级 UL 94 V-0
针脚数 2
额定电流Max 6A @125VAC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 30 V
接触电阻Max 10 mΩ
安装方式 Through Hole
长度 13 mm
宽度 12.7 mm
高度 33.3 mm
触点材质 Silver
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 工业
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
