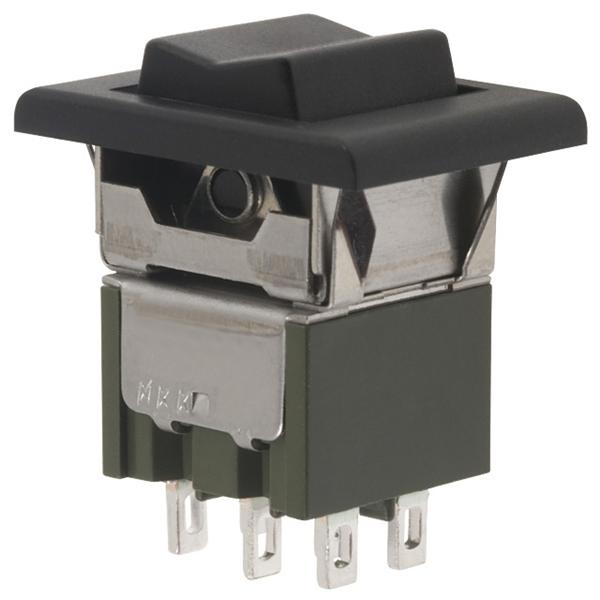

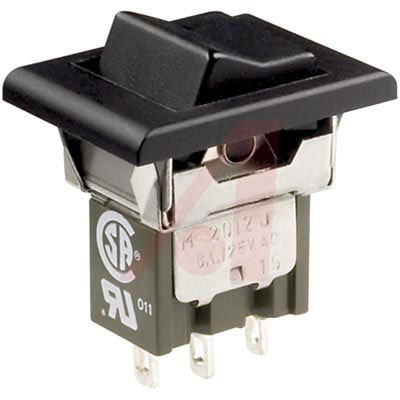

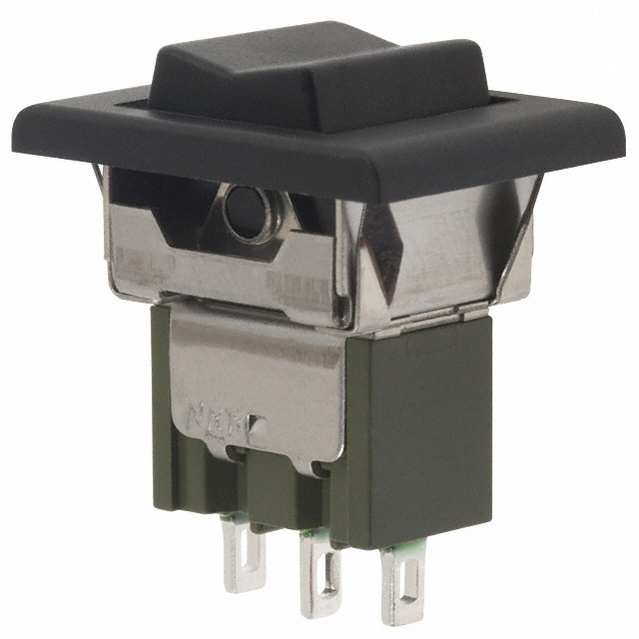

NKK SWITCHES M2012TJW01-FA-1A 船型开关, SPDT, 6A, 125VAC, 黑色
Series M miniature toggle switches are built to function most anywhere you put them. Antirotation, antijamming design protects contacts from damage due to excessive forces on the actuator. High insulating barriers increase isolation of circuits in multipole devices and provide added protection to contact points. Epoxy sealed terminals prevent entry of solder flux and other contaminants.
触点电镀 Silver
接触器类型 Rocker
额定电流 6.00 A
绝缘电阻 ≥1000MΩ @500VDC
排数 1
方向 Vertical
触点类型 SPDT
接触电阻 ≤10 MΩ
额定电流Max 6A @125VAC
工作温度Max 85 ℃
工作温度Min -30 ℃
接触电阻Max 10 mΩ
安装方式 Lug, Panel
长度 21.5 mm
宽度 15.6 mm
高度 25.9 mm
颜色 Black
触点材质 Silver
产品生命周期 25000 Cycles
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
M2012TJW01-FA-1A NKK 日本长野 | 当前型号 | 当前型号 |
7101J51ZQE22 C&K Components | 功能相似 | M2012TJW01-FA-1A和7101J51ZQE22的区别 |
