M2022ES1W01

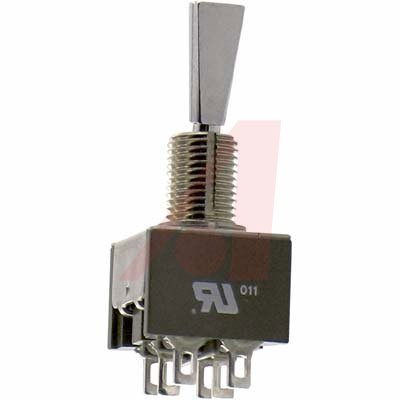

NKK SWITCHES  M2022ES1W01  拨动开关, DPDT, 6A, 125VAC

Series M miniature toggle switches are built to function most anywhere you put them. Antirotation, antijamming design protects contacts from damage due to excessive forces on the actuator. High insulating barriers increase isolation of circuits in multipole devices and provide added protection to contact points. Epoxy sealed terminals prevent entry of solder flux and other contaminants.

立创商城:
M2022ES1W01

艾睿:
The M2022ES1W01 toggle switch from NKK Switches comes with minimal lag when toggling a component of your circuit. This device has a maximum current rating of 6 A @ 125VAC. It has a DPDT configuration. This toggle switch has an operating temperature range of -30 °C to 85 °C. The M2022ES1W01 toggle switch has a solder lug termination style. This product is 13 mm long, 34.2 mm tall and 12.7 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.

Allied Electronics:
Switch; Mini Toggle; DPDT; ON-NONE-ON; .450 Flatted Actuator; No Cap; 6A; 125VAC; Solder

Newark:
# NKK SWITCHES  M2022ES1W01  Toggle Switch, Non Illuminated, DPDT, On-None-On, Panel, 6 A
