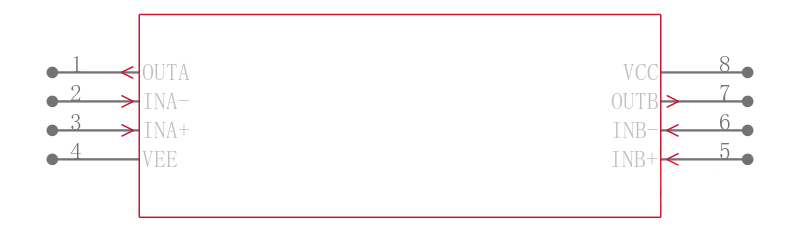

MAX4416ESA

低功耗， + 3V / 5V + ， 400MHz的单电源运算放大器具有轨至轨输出 Low-Power, +3V/+5V, 400MHz Single-Supply Op Amps with Rail-to-Rail Outputs

General Description

The MAX4414–MAX4419 operational amplifiers combine high-speed performance, low distortion, and ultra low supply current. Consuming just 1.6mA of supply current per amplifier, these devices operate from a single +2.7V to +5.5V supply, have Rail-to-Rail® outputs, and exhibit a common-mode input voltage range that extends from 100mV below ground to within 1.5V of the positive supply rail.

Features

♦ Ultra-Low 1.6mA Supply Current

♦ Single +3V/+5V Operation

♦ High Speed

  400MHz -3dB Bandwidth MAX4414/MAX4416/MAX4418

  200V/µs Slew Rate MAX4414/MAX4416/MAX4418

  150MHz -3dB Bandwidth MAX4415/MAX4417/MAX4419

  470V/µs Slew Rate MAX4415/MAX4417/MAX4419

♦ Rail-to-Rail Outputs

♦ Input Common-Mode Range Extends Beyond VEE

♦ Low Differential Gain/Phase: 0.03%/0.15°

♦ Low Distortion at 5MHz MAX4414/MAX4416/MAX4418

-93dBc SFDR

0.003% Total Harmonic Distortion

♦ Low Cost
