M2027SS1W01

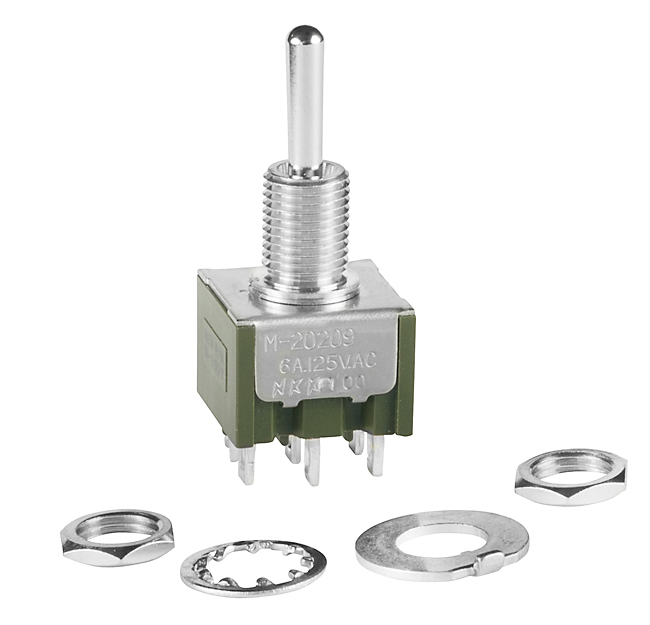

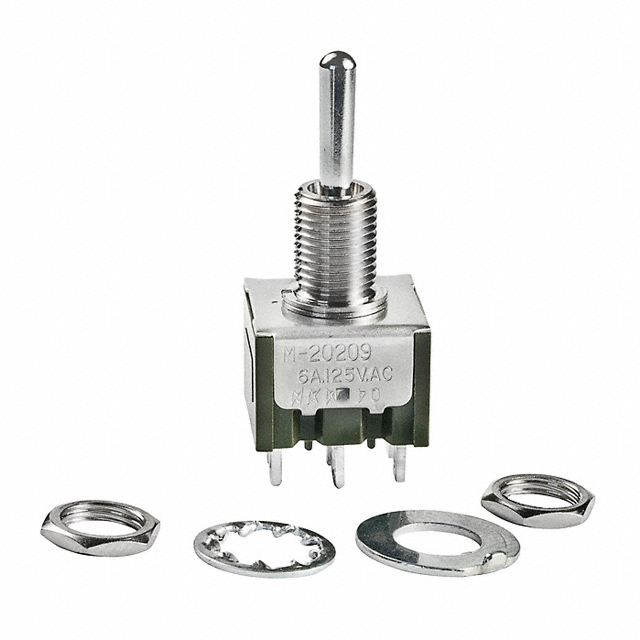

NKK SWITCHES  M2027SS1W01  拨动开关, SP3T, 6A, 125VAC

Series M miniature toggle switches are built to function most anywhere you put them. Antirotation, antijamming design protects contacts from damage due to excessive forces on the actuator. High insulating barriers increase isolation of circuits in multipole devices and provide added protection to contact points. Epoxy sealed terminals prevent entry of solder flux and other contaminants.

e络盟:
开关, 拨动, SP3T, 6A, 125VAC

艾睿:
The M2027SS1W01 toggle switch from NKK Switches is a simple way to power on and off various components of your application. This device has a maximum current rating of 6 A @ 125VAC. It has a SP3T configuration. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The M2027SS1W01 toggle switch has a solder lug termination style. This product is 13 mm long, 33.3 mm tall and 12.7 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.

Allied Electronics:
SWITCH, TOGGLE, SUBMINIATURE, BAT LEVER, THREADED BUSHING, SOLDER LUG, SP3T

Chip1Stop:
Switch Toggle ON ON ON SP3T Small Bat Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads

Verical:
Switch Toggle ON ON ON SP3T Small Bat Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads

Newark:
# NKK SWITCHES  M2027SS1W01  Toggle Switch, Non Illuminated, SP3T, On-On-On, Panel, 6 A

Powell:
MINIATURE TOGGLE/MULTI-FUNCTION
