MR 系列 螺丝刀 致动 PC 端子 DP 2-6 位置 黑色 旋钮 继电器

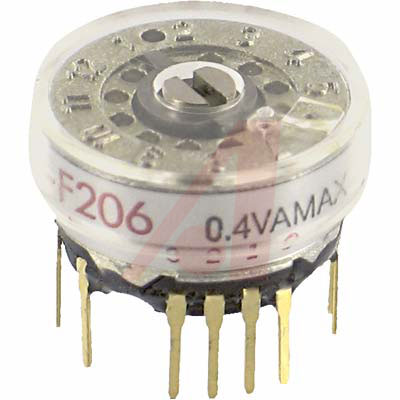

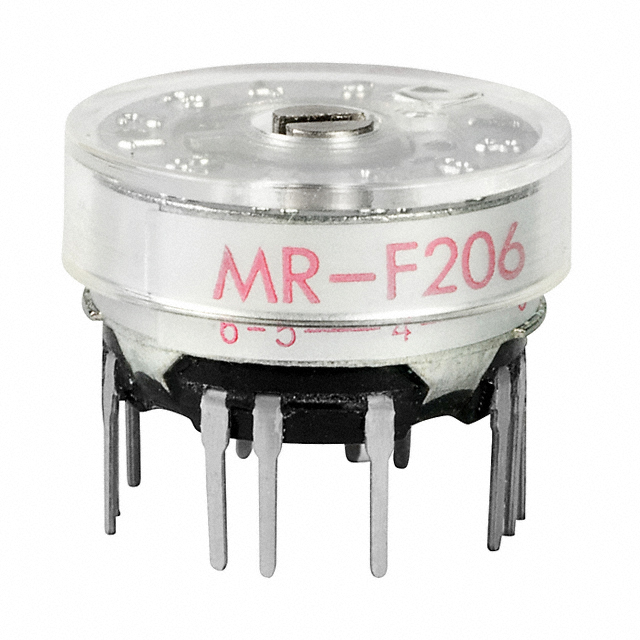

Operated by rotation, this rotary switch from Switches gives the ability to have more than just two switch positions. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a DP6T configuration. This rotary limit switch has a minimum operating temperature of -10 °C and a maximum of 70 °C. The MRF206 rotary limit switch has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 14 mm long, 8.2 mm tall and 14 mm deep.
触点电镀 Silver, Brass
额定电压DC 28 V
额定电压AC 28 V
额定电流 250 mA
绝缘电阻 100 MΩ
触点类型 DPDT
针脚数 6
接触电阻 50 mΩ
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 70 ℃
工作温度Min -10 ℃
额定电压 28 VDC
接触电阻Max 50 mΩ
安装方式 Through Hole
长度 12.6 mm
宽度 12.6 mm
高度 8.2 mm
颜色 Black
触点材质 Phosphor Bronze
工作温度 10℃ ~ 70℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
