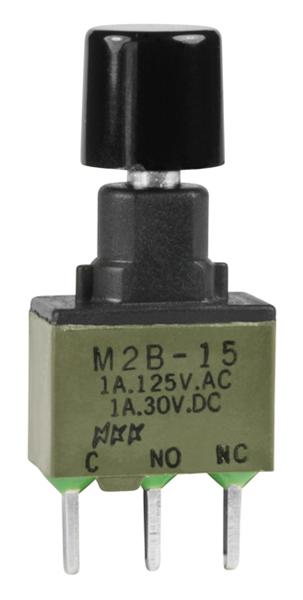

Switch Push Button ON ON SPDT Round Plunger 1A 125VAC 30VDC Momentary Contact PC Pins Thru-Hole
is manufactured by Switches and is categorized in the Pushbutton Switches category. M2B15BA5W03-BA is described as SWITCH PUSHBUTTON SPDT 1A 125V. Perfect Parts is a supplier of Switches and other Electromechanicals.
立创商城:
M2B15BA5W03-BA
贸泽:
Pushbutton Switches SPDT ON-ON PC 1A PRCS SLD .3 BLK CAP
艾睿:
Switch Push Button ON ON SPDT Round Plunger 1A 125VAC 30VDC Momentary Contact PC Pins Thru-Hole
Powell:
MINIATURE PUSHBUTTON/PC
额定电压DC 30 V
接触器类型 Button
额定电压AC 125 V
额定电流 1 A
排数 1
额定功率 0.4 VA
方向 Vertical
触点类型 SPDT
额定电流Max 1A @125VAC, 30VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 30 V
额定电压AC Max 125 V
接触电阻Max 20 mΩ
安装方式 Through Hole
封装 -
高度 25.6 mm
封装 -
触点材质 Silver Alloy
工作温度 -30℃ ~ 85℃
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
