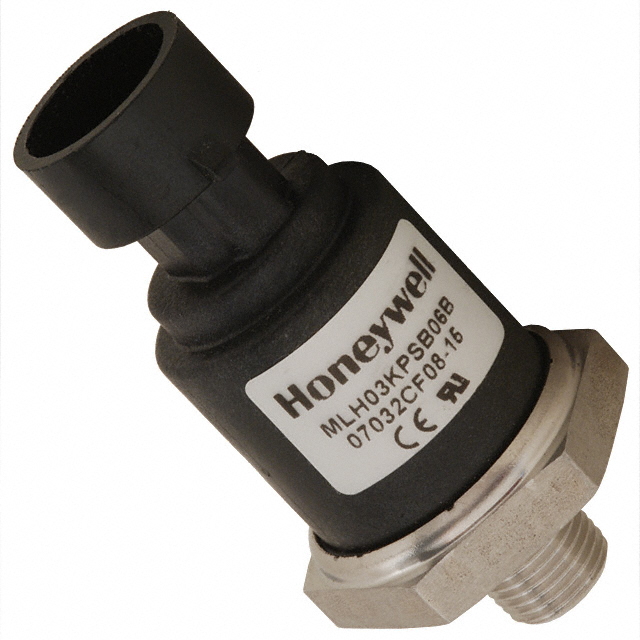

工业压力传感器 Gage,Amplified,2Kpsi 1/8-27 NPT, 5 Vdc
This industrial pressure sensor from is the ideal component for use in heavy-duty applications involving various force calculations. It has a voltage of 0.5 to 4.5 V. This device has a typical operating supply voltage of 5 V. This part has a temperature range of -40 °C to 125 °C. Its operating pressure range is 0psi to 2000psi, while its maximum overload pressure is 20000psi. It has a response time of 2 ms.
电源电压DC 5.00 V
额定电压DC 5.00 V
输出电压 0.5V ~ 4.5V
供电电流 4 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.25 %
额定电压 5 V
电源电压 5V ~ 6V
引脚数 3
封装 Cylinder, Metal
长度 62.509 mm
宽度 30.988 mm
高度 55 mm
封装 Cylinder, Metal
重量 57 g
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 工业自动化
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 9026204000
