MLH025BSD14B

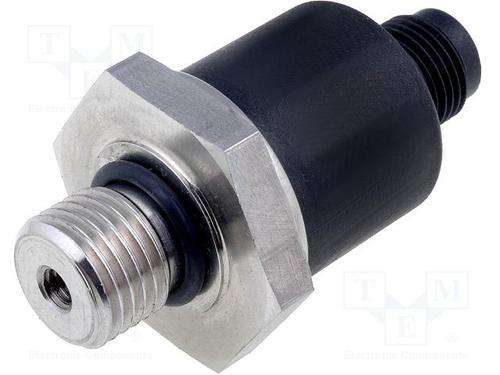

Honeywell All Metal Pressure Sensors, MLH Series, Pressure Range 0 BAR to 16BAR, Units in BAR, Measurement Sealed Gage psi4, Electrical Termination DIN 43650-C, 8mm-male, Pressure Connector G 1/4 with O-ring Groove3, Output Type 4mA to 20mA, Diaphragm Seal - Advanced Thick Film ATF.

If you have a project that involves heavy-duty force calculations, use the durable industrial pressure sensor from . This part can handle a current up to 20 mA. This device"s minimum operating supply voltage of 9.5 V, while its maximum is 30 V. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has a response time of 2 ms. Its operating pressure range is 0bar to 25bar, while its maximum overload pressure is 250bar.
