MLH150PSB01B

HONEYWELL  MLH150PSB01B  压力传感器

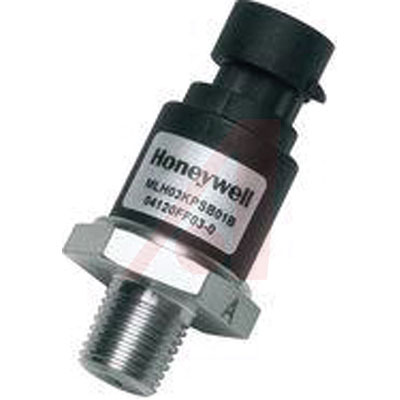

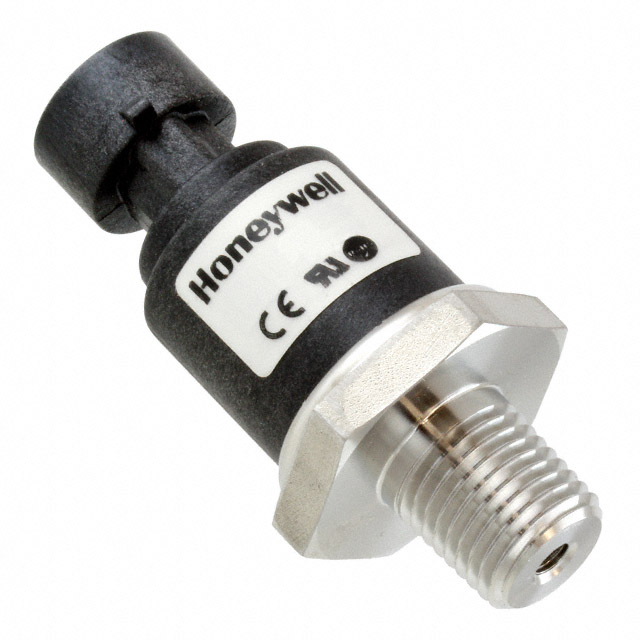

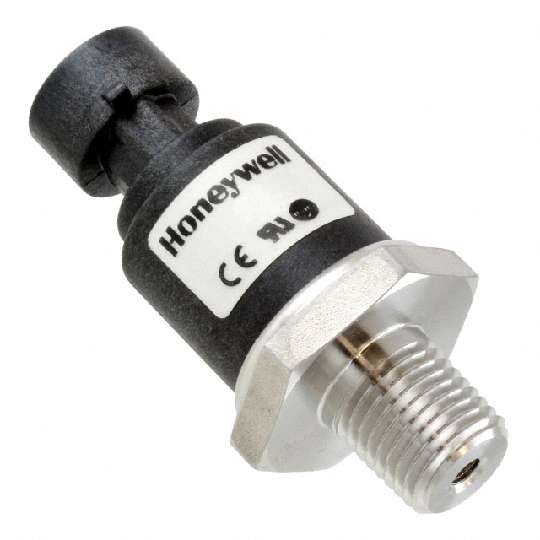

MLH Series pressure sensors combine the latest in Application Specific Integrated Circuit ASIC technology with proven media isolated, metal diaphragm design. This digitally compensated sensor offers an unparalleled value and performance combination making it the ideal pressure sensing solution for demanding applications. Fully temperature compensated, calibrated and amplified, the MLH is available in 50 PSI to 8,000 PSI pressure ranges. MLH sensors deliver ±0.25% full scale accuracy Best Fit Straight Line BFSL and 2% total error over a temperature range of –40°C to +125°C –40°F to +257°F. Industry standard, field proven connectors and process ports are offered for high reliability and user flexibility.

**Features:**

* All Metal Wetted Parts for Use in Wide Variety of Fluid Applications

* No Internal Elastomeric Seals Mean No O-Ring Compatibility Issues

* Amplified Outputs Eliminate Cost of External Amplifiers

* Reverse Polarity and Overvoltage Protection Provide Protection Against Reversed Excitation

* Less Than 2 ms Response Time Provides Accurate, High-Speed Measurement

* Rated IP65 or Better for Protection from Harsh Environments

* Exceeds CE Heavy Industrial EMC for Use in Areas of High RFI/EMI

**Typical Applications:**

* Diesel Engines

* Refrigeration and HVAC/R

* General Industrial

* General Hydraulics

* Off Road Vehicles

* Braking Systems

* Natural Gas Vehicles
