Switch Toggle ON OFF ON SPDT Bat Lever PC Pins 6A 250VAC 30VDC 0.4VA PC Mount
Series M2 process sealed miniature pushbuttons have upper and lower case halves ultrasonically welded together plus epoxy sealed terminals and an o-ring seal at the top of the bushing to prevent entry of flux, solvents and other contaminants during build processes. The sealed construction lends itself to real world applications too.
艾睿:

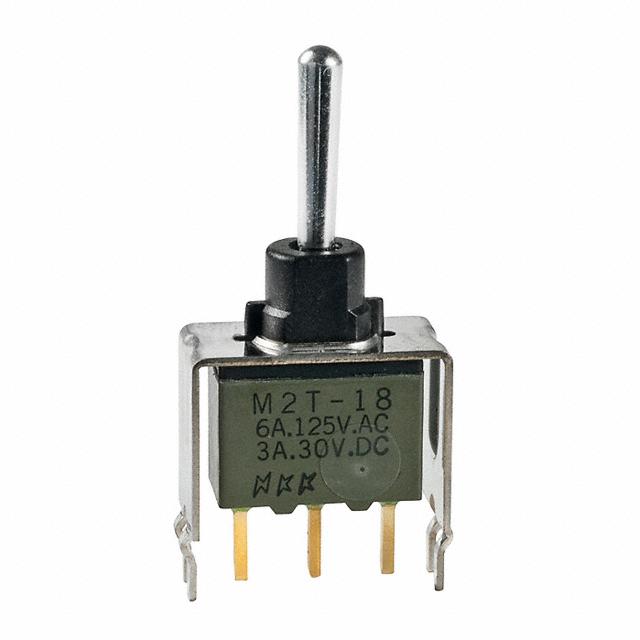

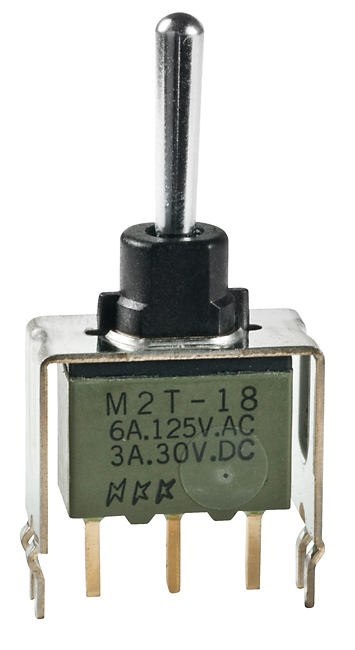

The process sealed M2T18SA5A13 toggle switch from NKK Switches allows you to control the status of your project. It has a SPDT configuration. This device has a maximum current rating of 6 A @ 125VAC. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The M2T18SA5A13 toggle switch has a PC pin termination style. This product is 16.25 mm long, 30.75 mm tall and 8 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.
Allied Electronics:
SWITCH TOGGLE SPDT 6A 125V
富昌:
M2 Series SPDT Mom-Off-Mom Unthreaded Process Sealed Miniature Toggle
Chip1Stop:
Switch Toggle ON OFF ON SPDT Bat Lever PC Pins 6A 250VAC 30VDC 0.4VA PC Mount
Powell:
MINIATURE TOGGLE/PC
