MB2000 系列 小型 单刀双掷 开-瞬时 焊接接线片 按键开关
Series MB2000 miniature pushbutton switches are designed with an all metal switch action to ensure a 100,000 minimum mechanical life and a resin case to provide isolation between circuits. Although not process sealed Series MB2000 miniature pushbutton switches do have epoxy sealed terminals to prevent entry of solder flux, and other liquid agents, into the switch action.
立创商城:
MB2065LS1W01-BA
艾睿:

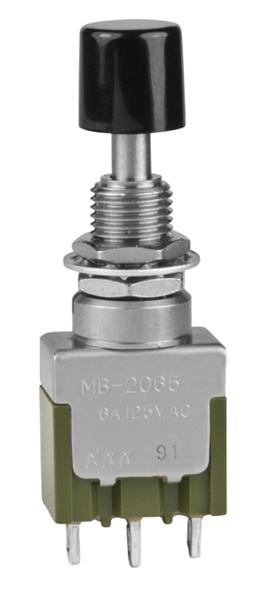

Have complete control of the state of your design by implementing this MB2065LS1W01-BA push button switch from NKK Switches. This device has a maximum current rating of 6 A @ 125VAC. It has a SPDT configuration. This push switch has an operating temperature range of -30 °C to 85 °C. The MB2065LS1W01-BA push switch has a solder lug termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC. This product is 13 mm long, 40 mm tall and 9 mm deep.
Allied Electronics:
MINIATURE PUSHBUTTON/MULTI-FUNCTION
Powell:
MINIATURE PUSHBUTTON/MULTI-FUNCTION
