MLH250BSL01B

MLH250BSL01B图片1
MLH250BSL01B图片2

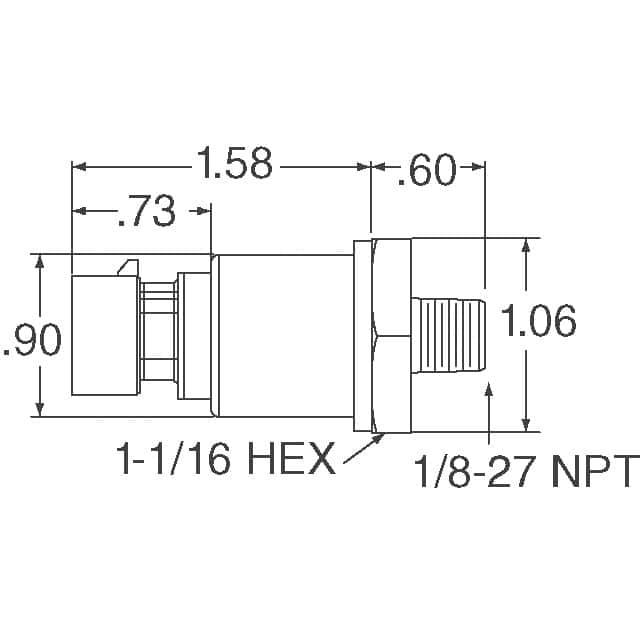

MLH250BSL01B图片3
MLH250BSL01B概述

Honeywell All Metal Pressure Sensors, MLH Series, Pressure Range 0 PSI to 200PSI, Units in PSI, Measurement Sealed Gage psi4, Electrical Termination Delphi Metri-Pack 150, Pressure Connector 1/8in-27 NPT, Output Type 0.5VDC to 4.5VDC Ratiometric from 5VDC Excitation, Diaphragm Seal - Advanced Thick Film ATF.

All Metal Pressure Sensors, MLH Series, Pressure Range 0 PSI to 200 PSI, Units in PSI, Measurement Sealed Gage psi4, Electrical Termination Delphi Metri-Pack 150, Pressure Connector 1/8 in-27 NPT, Output Type 0.5 Vdc to 4.5 Vdc Ratiometric from 5 Vdc Excitation, Diaphragm Seal - Advanced Thick Film ATF.


得捷:
MLH ALL METAL PRESS SENSE -ATF


艾睿:
Pressure Sensor 0bar to 250bar Sealed Gage 3-Pin


Chip1Stop:
Pressure Sensor 0bar to 250bar Sealed Gage 3-Pin


MASTER:
Honeywell All Metal Pressure Sensors, MLH Series, Pressure Range 0 BAR to 250 BAR, Units in BAR, Measurement Sealed Gage psi4, Electrical Termination Cable 1 m, Pressure Connector 1/4-18 NPT, Output Type 4 mA to 20 mA, Diaphragm Seal - Advanced Thick


Powell:
MLH


Electro Sonic:
Honeywell All Metal Pressure Sensors, MLH Series, Pressure Range 0 BAR to 250 BAR, Units in BAR, Measurement Sealed Gage ...


MLH250BSL01B中文资料参数规格
技术参数

输出电流Max 20 mA

工作温度Max 125 ℃

工作温度Min -40 ℃

精度 ±0.25 %

电源电压 9.5V ~ 30V

封装参数

引脚数 3

封装 Cylinder, Metal

外形尺寸

封装 Cylinder, Metal

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

制造应用 工业自动化

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

HTS代码 9026204000

数据手册

在线购买MLH250BSL01B
型号: MLH250BSL01B
描述:Honeywell All Metal Pressure Sensors, MLH Series, Pressure Range 0 PSI to 200PSI, Units in PSI, Measurement Sealed Gage psi4, Electrical Termination Delphi Metri-Pack 150, Pressure Connector 1/8in-27 NPT, Output Type 0.5VDC to 4.5VDC Ratiometric from 5VDC Excitation, Diaphragm Seal - Advanced Thick Film ATF.
