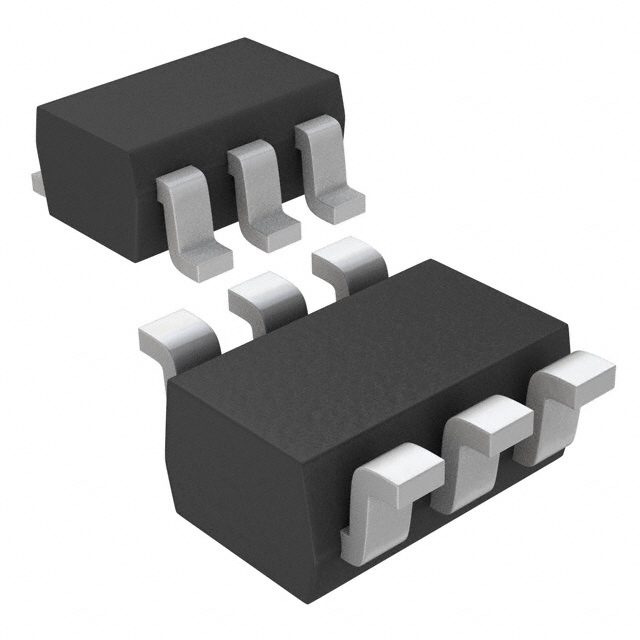

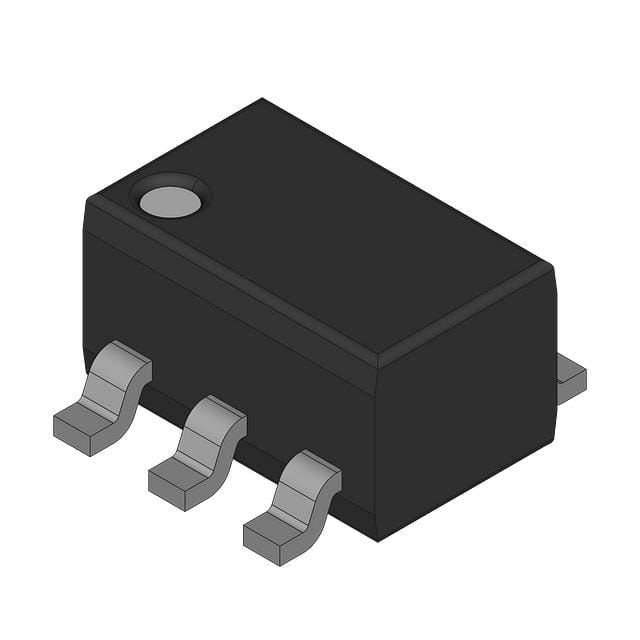

SC70 / SOT23-8为50mA IOUT ,轨到轨输入/输出运算放大器,带有关断/静音 SC70/SOT23-8, 50mA IOUT, Rail-to-Rail I/O Op Amps with Shutdown/Mute
通用 放大器 电路 满摆幅 SC-70-6
得捷:
IC OPAMP GP 1 CIRCUIT SC70-6
贸泽:
运算放大器 - 运放 50mA IOUT Rail-Rail w/Shutdown/Mute
安富利:
The MAX4335–MAX4338 op amps deliver 40mW per channel into 32Ω from ultra-small SC70/SOT23 packages making them ideal for mono/stereo headphone drivers in portable applications. These amplifiers have a 5MHz gain-bandwidth product and are guaranteed to deliver 50mA of output current while operating from a single supply of 2.7V to 5.5V.The MAX4336 and the MAX4338 have a shutdown/mute mode that reduces the supply current to 0.04µA per amplifier and places the outputs in a high-impedance state.The MAX4335–MAX4338 have 90dB power-supply rejection ratio PSRR, eliminating the need for costly preregulation in most audio applications. Both the input voltage range and the output voltage swing include both supply rails, maximizing dynamic range.The MAX4335/MAX4336 single amplifiers are available in ultra-small 6-pin SC70 packages. The MAX4337/MAX4338 dual amplifiers are available in an 8-pin SOT23 and a 10-pin µMAX® package, respectively. All devices are specified from -40°C to +85°C.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX4336EXT-T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX4336EXT+T 美信 | 类似代替 | MAX4336EXT-T和MAX4336EXT+T的区别 |
