高压摆率,宽带宽
Quality bipolar fabrication with innovative design concepts are employed for the MC33071/72/74, MC34071/72/74 series of monolithic operational amplifiers. This series of operational amplifiers offer 4.5 MHz of gain bandwidth product, 13 V/s slew rate and fast settling time without the use of JFET device technology. Although this series can be operated from split supplies, it is particularly suited for single supply operation, since the common mode input voltage range includes ground potential VEE. With a Darlington input stage, this series exhibits high input resistance, low input offset voltage and high gain. The all NPN output stage, characterized by no deadband crossover distortion and large output voltage swing, provides high capacitance drive capability, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source/sink AC frequency response.
Features
•Wide Bandwidth: 4.5 MHz
•High Slew Rate: 13 V/s
•Fast Settling Time: 1.1 s to 0.1%
•Wide Single Supply Operation: 3.0 V to 44 V
•Wide Input Common Mode Voltage Range: Includes Ground VEE
•Low Input Offset Voltage: 3.0 mV Maximum A Suffix
•Large Output Voltage Swing: −14.7 V to +14 V with ±15 V Supplies
•Large Capacitance Drive Capability: 0 pF to 10,000 pF
•Low Total Harmonic Distortion: 0.02%
•Excellent Phase Margin: 60°
•Excellent Gain Margin: 12 dB
•Output Short Circuit Protection
•ESD Diodes/Clamps Provide Input Protection for Dual and Quad
•Pb−Free Packages are Available
供电电流 1.9 mA
电路数 4
通道数 4
共模抑制比 70 dB
转换速率 13.0 V/μs
增益频宽积 4.5 MHz
输入补偿电压 1 mV
输入偏置电流 100 nA
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压Max 44 V
电源电压Min 3 V
安装方式 Surface Mount

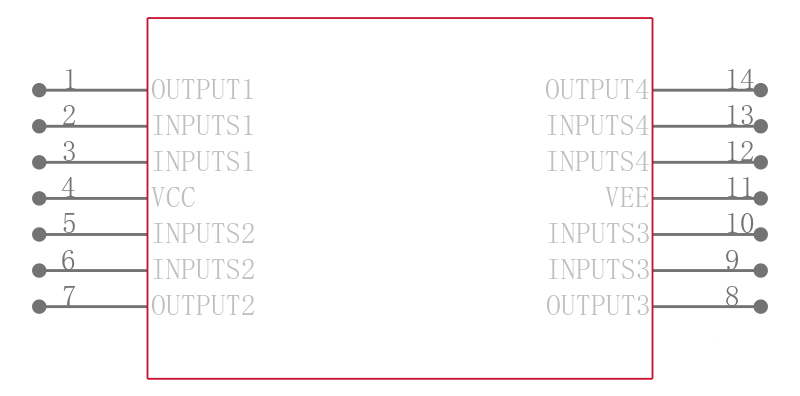

引脚数 14

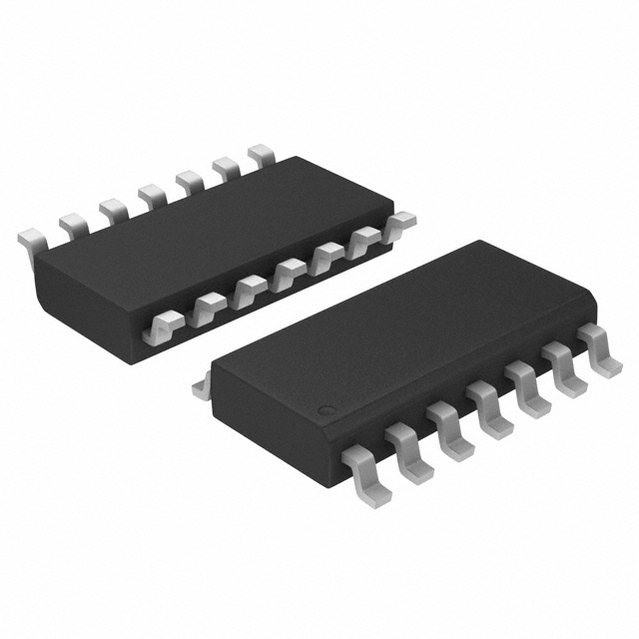

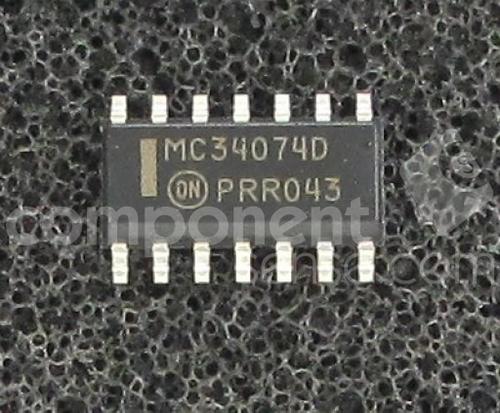

封装 SOIC-14
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-14
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC34074DR2 ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC34074DR2G 安森美 | 类似代替 | MC34074DR2和MC34074DR2G的区别 |
