轨至轨运算放大器 Rail-to-Rail Operational Amplifiers
The MC33201/2/4 family of op-amps provides rail-to-rail operation on both the input and output. The inputs can be driven as high as 200mV beyond the supply rails without phase reversal on the outputs, and the output can swing within 50 mV of each rail. This rail-to-rail operation enables the user to make full use of the supply voltage range available. It is designed to work at very low supply voltages +/- 0.9 V yet can operate with a supply of up to +12V and ground. Output current boosting techniques provide a high output current capability while keeping the drain current of the amplifier to a minimum. Also, the combination of low noise and distortion with a high slew rate and drive capability make this an ideal amplifier for audio applications.
Features
---
|
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|

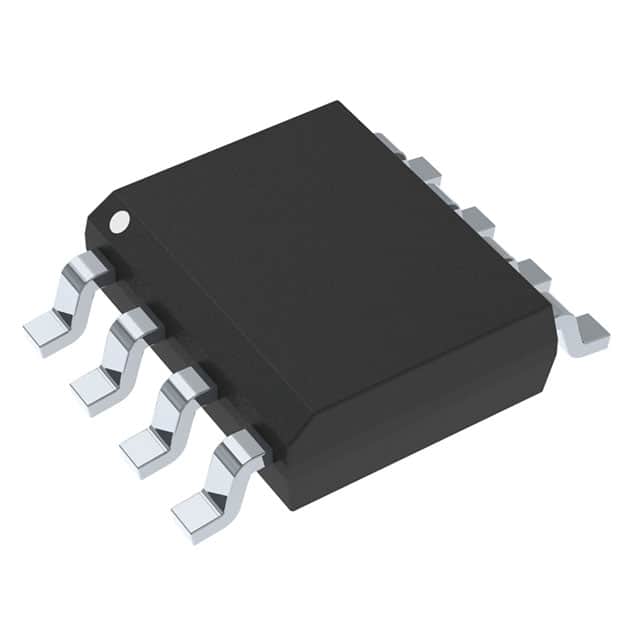

MC33201VD ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC33201DR2G 安森美 | 完全替代 | MC33201VD和MC33201DR2G的区别 |
MC33201DG 安森美 | 完全替代 | MC33201VD和MC33201DG的区别 |
MC33201DR2 安森美 | 完全替代 | MC33201VD和MC33201DR2的区别 |
