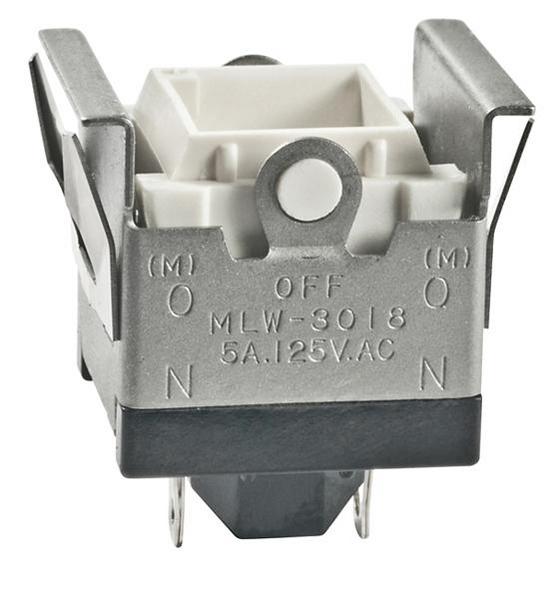

MLW3018概述
Switch Rocker ON OFF ON SPDT Solder Lug 5A 250VAC 30VDC 30000Cycles
10 Milliohms Max. Contact Resistance, Snap-In Miniature Rockers
* Two bezel sizes adapt to varied panel cutouts
* Durable stainless steel housing prevents corrosion
* Built-in protective cover shields contacts from dust
贸泽:
Rocker Switches SPDT ON-OFF-ON
Allied Electronics:
Switch, Basic, Solder LUG Terminal, SPDT, ON-OFF-ON
MLW3018中文资料参数规格
技术参数
触点电镀 Silver
额定电压DC 30 V
接触器类型 Rocker
额定电压AC 250 V
额定电流 5 A
绝缘电阻 ≥200MΩ @500VDC
方向 Vertical
触点类型 SPDT
针脚数 3
接触电阻 ≤10 MΩ
额定电流Max 5A @125VAC
工作温度Max 50 ℃
工作温度Min -10 ℃
额定电压 250 VAC
额定电压DC Max 30 V
额定电压AC Max 250 V
接触电阻Max 10 mΩ
封装参数
安装方式 Lug, Panel
物理参数
触点材质 Silver
工作温度 -10℃ ~ 50℃
符合标准
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
