M1MA141WKT1

共阴极双开关二极管 COMMON CATHODE DUAL SWITCHING DIODE

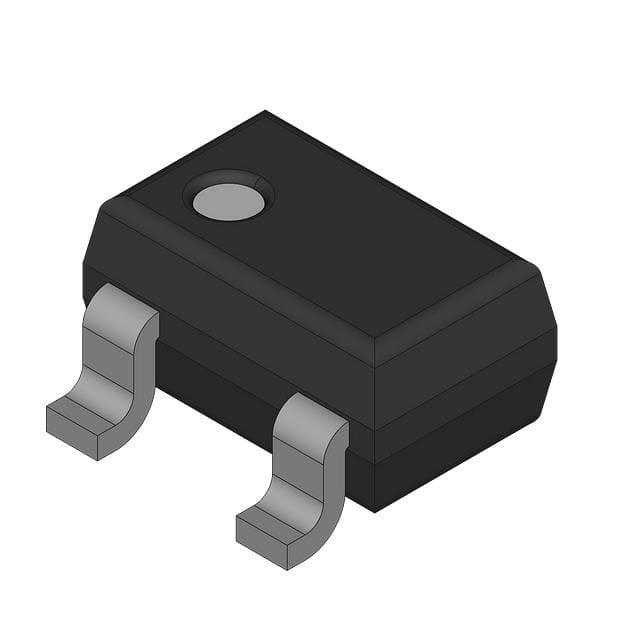

反向电压VrReverse Voltage| 40V \---|--- 平均整流电流IoAverage Rectified Current| 100mA/0.1A 最大正向压降VFForward VoltageVf | 1.2V 反向恢复时间TrrReverse Recovery Time| 3ns 最大耗散功率PdPower Dissipation| 150mW/0.15W Description & Applications| Single Silicon Switching Diode This Silicon EpitAxiAl PlAnAr Diode is designed for use in ultrA high speed switching ApplicAtions. This deVice is housed in the SC−70 pAckAge which is designed for low power surfAce mount ApplicAtions. FeAtures • Pb−Free PAckAge is AVAilAble • FAst trr < 3.0 ns • Low CD, < 2.0 pF • AVAilAble in 8 mm TApe And Reel Use m1mA141/2KT1 to order the 7 inch/3000 unit reel Use m1mA141/2KT3 to order the 13 inch/10,000 unit reel 描述与应用| 单硅开关 这硅外延平面二极管是专为使用超高 高速开关应用。这个装置是设在SC-70 这是专为低功率表面贴装应用包。 特点 •无铅包装是可用 •快速TRR<3.0纳秒 •低CD，<2.0 pF的 •可在8毫米编带和卷轴 使用m1mA141/2KT1到责令7 inch/3000的单位卷轴 使用m1mA141/2KT3责令13 inch/10的000个单位卷轴
