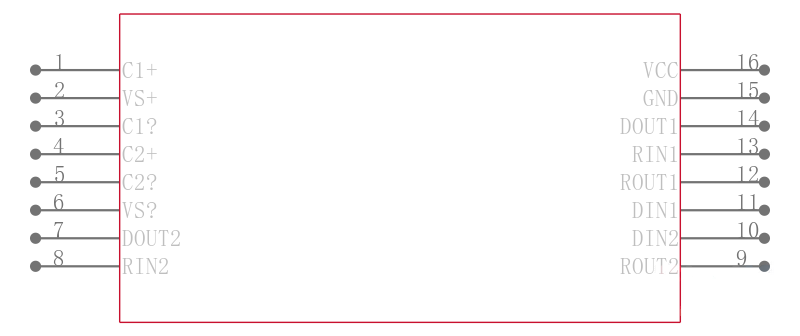

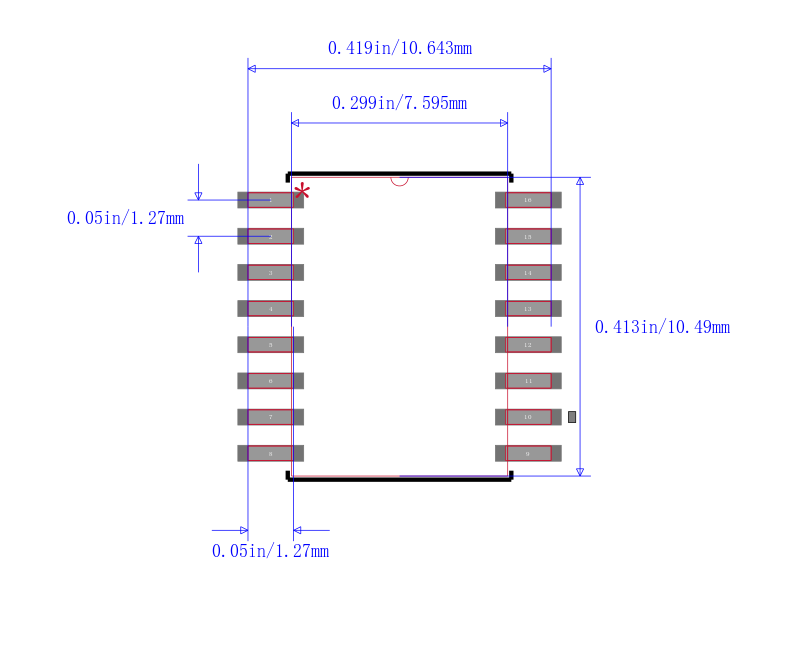

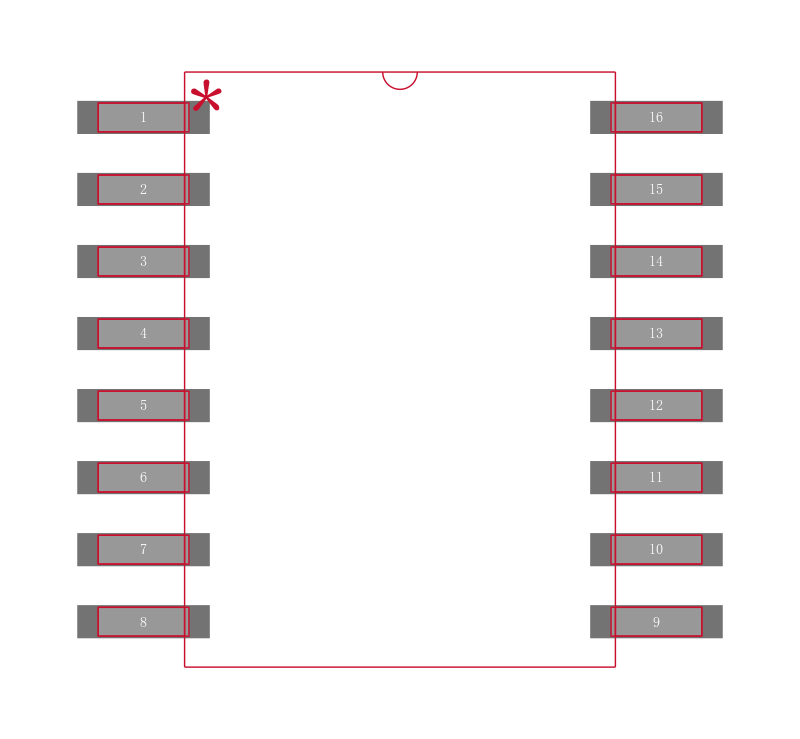

MAX232EIDWRG4

双路RS -232驱动器/接收器，具有IEC61000-4-2保护 DUAL RS-232 DRIVER/RECEIVER WITH IEC61000-4-2 PROTECTION

DESCRIPON/ORDERING INFORMATION

The MAX232E is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/RS-232-F voltage levels from a single 5-V supply. Each receiver converts TIA/RS-232-F inputs to 5-V TTL/CMOS levels. This receiver has a typical threshold of 1.3 V, a typical hysteresis of 0.5 V, and can accept ±30-V inputs. Each driver converts TTL/CMOS input levels into TIA/RS-232-F levels. The driver, receiver, and voltage-generator functions are available as cells in the Texas Instruments LinASIC™ library.

FEATURES

• Meets or Exceeds TIA/RS-232-F and ITU Recommendation V.28

• Operates From a Single 5-V Power Supply With 1.0-μF Charge-Pump Capacitors

• Operates up to 250 kbit/s

• Two Drivers and Two Receivers

• ±30-V Input Levels

• Low Supply Current . . . 8 mA Typical

• ESD Protection for RS-232 Bus Pins

– ±15-kV Human-Body Model HBM

– ±8-kV IEC61000-4-2, Contact Discharge

– ±15-kV IEC61000-4-2, Air-Gap Discharge

APPLICATIONS

• TIA/RS-232-F

• Battery-Powered Systems

• Terminals

• Modems

• Computers
