MAX202CDWR

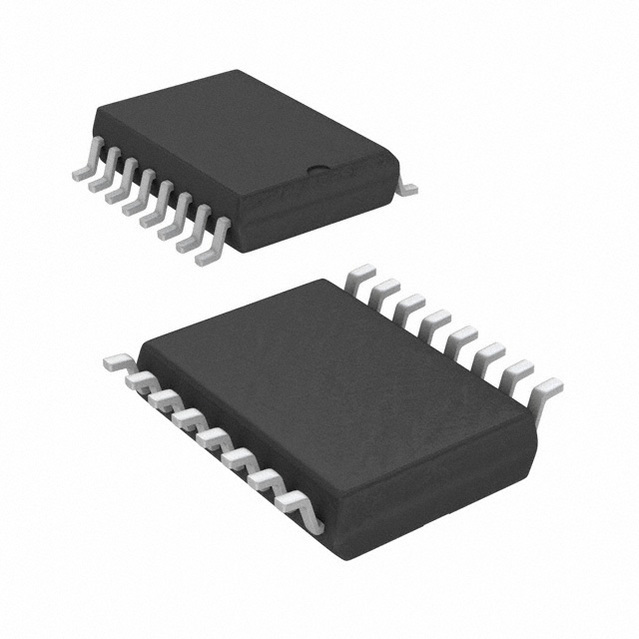

TEXAS INSTRUMENTS  MAX202CDWR  收发器, RS232, 2驱动器, 4.5V-5.5电源, SOIC-16

The is a RS-232 dual Line Driver/Receiver with ±15kV ESD protection pin-to-pin serial-port connection pins, including GND. The device meets the requirements of A/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 5V supply. The device operates at data signalling rates up to 120kbps and a maximum of 30V/ms driver output slew rate.

.

Continuous short-circuit duration

.

Latch-up performance exceeds 100mA per JESD 78, class I

.

300R Output resistance

.

Green product and no Sb/Br
