5 -V多通道RS - 232线路驱动器/ RECEVER 5-V MULTICHANNEL RS-232 LINE DRIVER/RECEVER

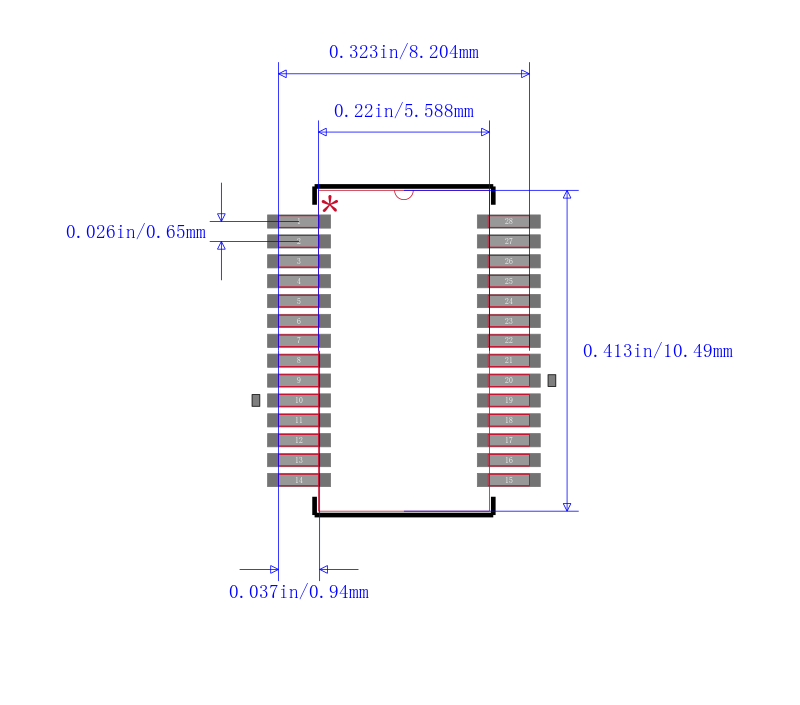

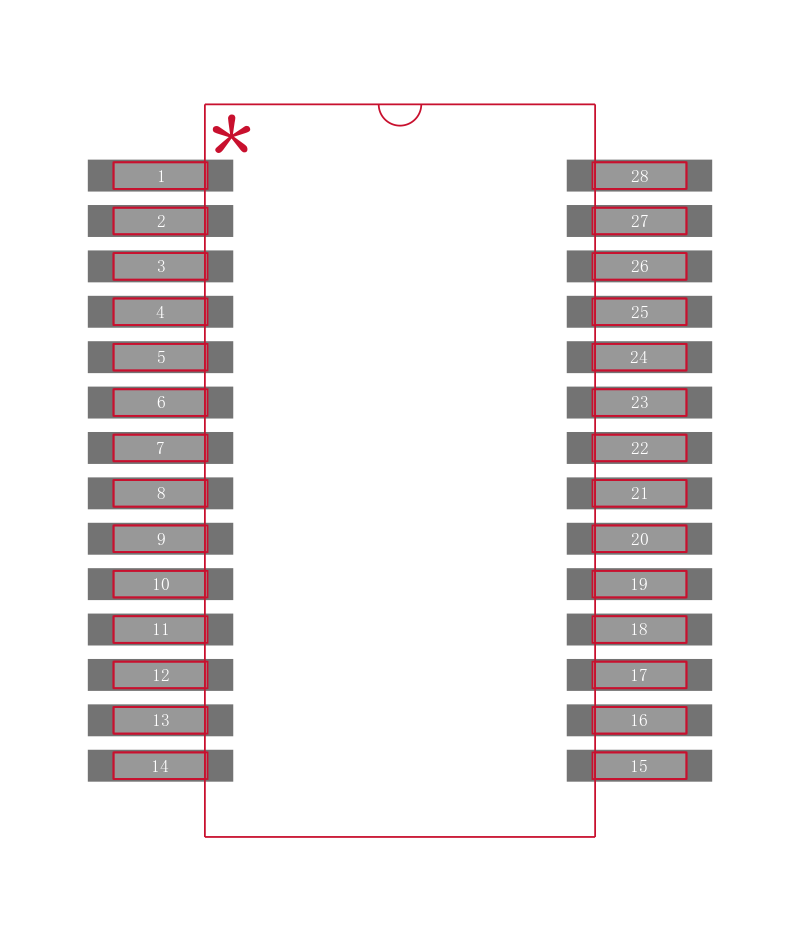

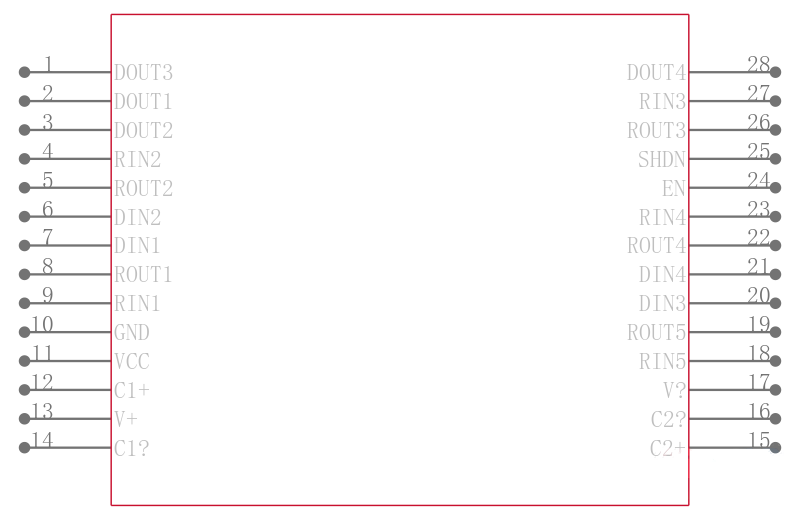

The MAX211 device consists of four line drivers, five line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin serial-port connection pins, including GND. The device meets the requirements of A/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 5-V supply. The devices operate at data signaling rates up to 120 kbit/s and a maximum of 30-V/µs driver output slew rate.
The MAX211 has both shutdown SHDN and enable control EN\\\\. In shutdown mode, the charge pumps are turned off, V+ is pulled down to VCC, V is pulled to GND, and the transmitter outputs are disabled. This reduces supply current typically to 1 µA. EN\ is used to put the receiver outputs into the high-impedance state to allow wired-OR connection of two RS-232 ports. It has no effect on the RS-232 drivers or the charge pumps.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX211CDBR TI 德州仪器 | 当前型号 | 当前型号 |
TRS211CDB 德州仪器 | 完全替代 | MAX211CDBR和TRS211CDB的区别 |
MAX213EEAI 美信 | 完全替代 | MAX211CDBR和MAX213EEAI的区别 |
MAX211IDBR 德州仪器 | 类似代替 | MAX211CDBR和MAX211IDBR的区别 |
