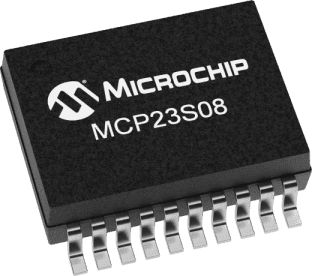

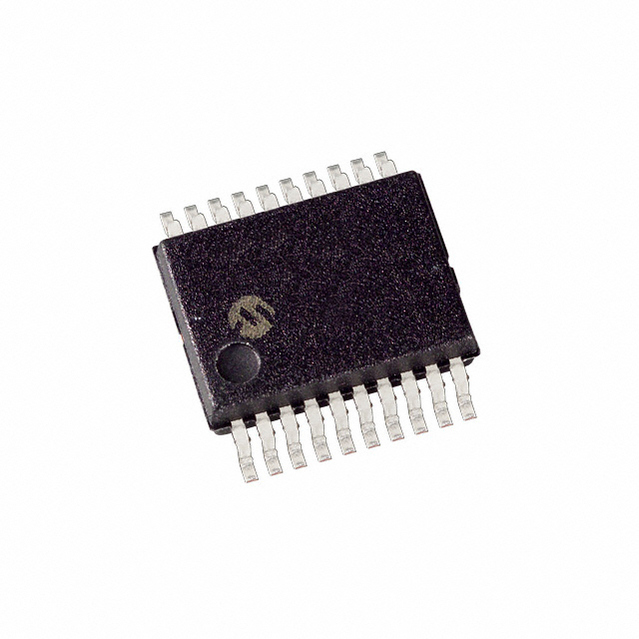

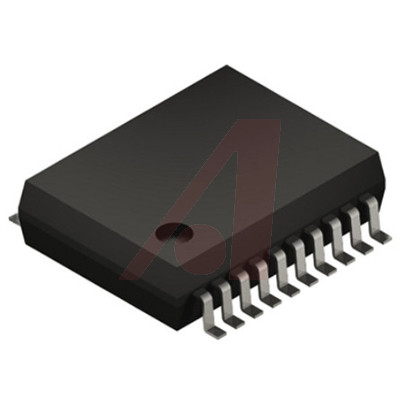

MCP23008系列 5.5V 1.7MHz 8位 I/O扩展器 带串行接口-SSOP-20
The MCP23X08 device provides 8-bit, general purpose, parallel I/O expansion for I2C bus or SPI applications. The two devices differ in the number of hardware address pins and the serial interface:
• MCP23008 – I2C interface; three address pins
• MCP23S08 – SPI interface; two address pins
The MCP23X08 consists of multiple 8-bit configuration registers for input, output and polarity selection. The system master can enable the I/Os as either inputs or outputs by writing the I/O configuration bits. The data for each input or output is kept in the corresponding Input or Output register. The polarity of the Input Port register can be inverted with the Polarity Inversion register. All registers can be read by the system master.
Features
• 8-bit remote bidirectional I/O port
\- I/O pins default to input
• High-speed I2C™ interface MCP23008
\- 100 kHz
\- 400 kHz
\- 1.7 MHz
• High-speed SPI interface MCP23S08
\- 10 MHz
• Hardware address pins
\- Three for the MCP23008 to allow up to eight devices on the bus
\- Two for the MCP23S08 to allow up to four devices using the same chip-select
• Configurable interrupt output pin
\- Configurable as active-high, active-low or open-drain
• Configurable interrupt source
\- Interrupt-on-change from configured defaults or pin change
• Polarity Inversion register to configure the polarity of the input port data
• External reset input
• Low standby current: 1 µA max.
• Operating voltage:
\- 1.8V to 5.5V @ -40°C to +85°C I-Temp
\- 2.7V to 5.5V @ -40°C to +85°C I-Temp
\- 4.5V to 5.5V @ -40°C to +125°C E-Temp
Packages
• 18-pin PDIP 300 mil
• 18-pin SOIC 300 mil
• 20-pin SSOP
• 20-pin QFN
电源电压DC 5.50V max
输出电流 25 mA
供电电流 1 mA
针脚数 20
时钟频率 10 MHz
位数 8
耗散功率 700 mW
输入/输出数 8 Input
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.8V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 20
封装 SSOP-20
封装 SSOP-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP23S08T-E/SS Microchip 微芯 | 当前型号 | 当前型号 |
MCP23S08-E/SS 微芯 | 类似代替 | MCP23S08T-E/SS和MCP23S08-E/SS的区别 |
MCP23S09T-E/SO 微芯 | 类似代替 | MCP23S08T-E/SS和MCP23S09T-E/SO的区别 |
MCP23008-E/SO 微芯 | 功能相似 | MCP23S08T-E/SS和MCP23008-E/SO的区别 |
