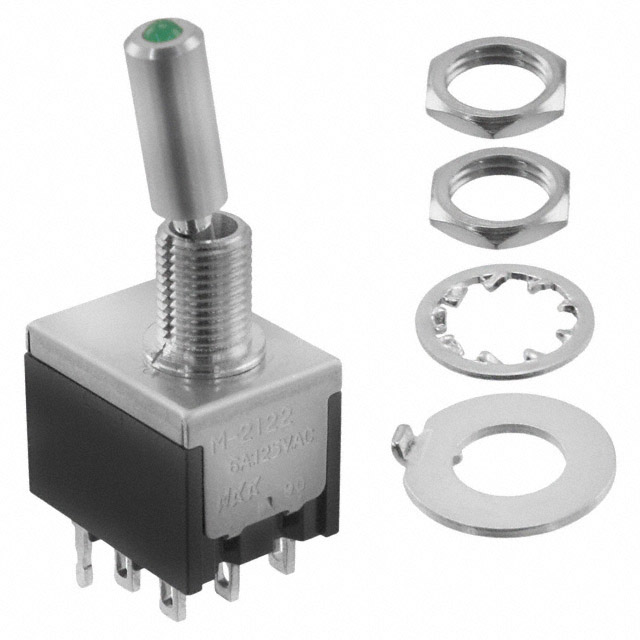

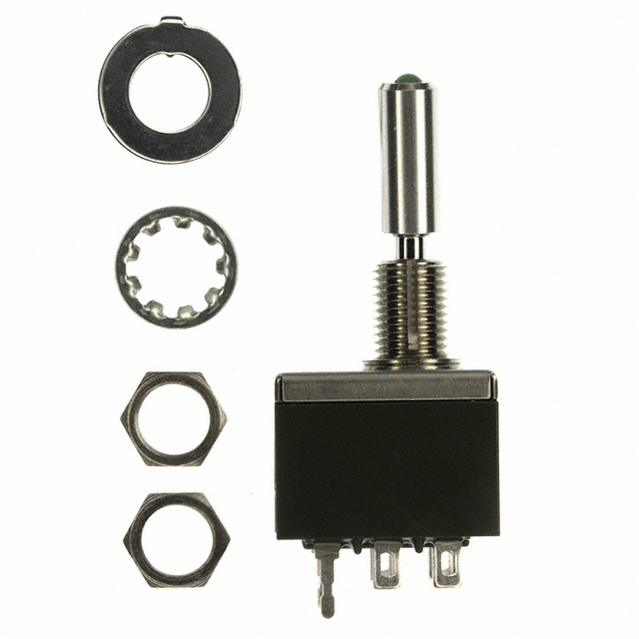

NKK SWITCHES M2122TFW01 拨动开关, M2100系列, 发光, DPDT, 开-无-开, 面板, 6 A
The M2100 series Tipped Toggle Switch has LED illumination at tip of toggle. It is available as single colour LEDs of red, yellow and green, plus bicolour red/green, to meet varied design requirements. The anti-jamming feature is to protect contacts from damage due to excessive downward force on the toggle. High torque bushing prevents the bushing from rotating or separating from the metal frame during installation. It has 1500V dielectric strength between switch contacts and case is accomplished by clinching the frame away from the terminals.
触点电镀 Silver
绝缘电阻 1.00 GΩ
排数 2
触点类型 DPDT
接触电阻 10.0 mΩ
额定电流Max 6A @125VAC
工作温度Max 55 ℃
工作温度Min -10 ℃
接触电阻Max 10 mΩ
安装方式 Through Hole
长度 13 mm
宽度 17.5 mm
高度 43 mm
颜色 Green
触点材质 Silver Alloy
包装方式 Bulk
制造应用 Industrial, 工业
RoHS标准
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
