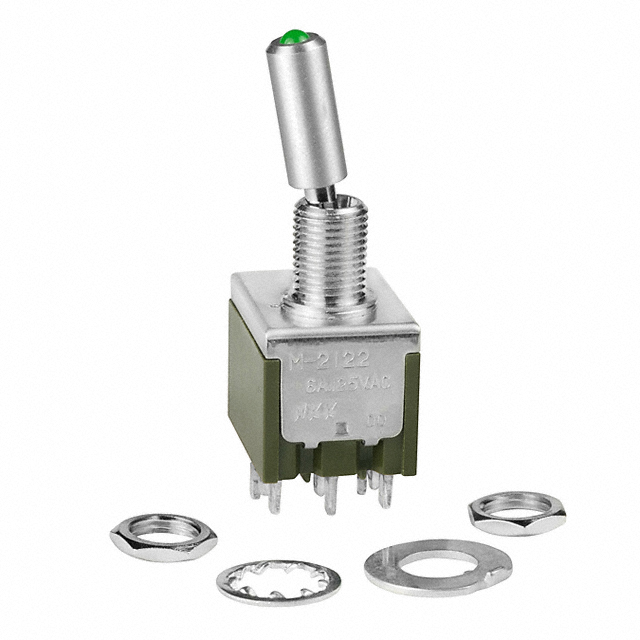

Switch Toggle ON None ON DPDT Lighted Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads
* 6A Power Level & 0.4VA Logic Level; Bushing and PCB Mount, Single or Bicolor LED, UL, CSA
* LED Tipped Actuators
* Industry"s first LED illumination at tip of toggle and paddle switches.
* Single or bicolor LEDs to meet varied design requirements.
* Anti-jamming feature to protect contacts from damage caused by excessive downward force on the toggle.
* High torque bushing prevents the bushing from rotating or separating from the metal frame during installation.
* Stainless-steel frame resists corrosion.
* Patented silver contacts are made of specially composed alloy for hardness.
* High insulating barriers protect against crossover in double pole devices.
* Terminals are molded in and epoxy sealed to lock out flux, dust and other contaminants.
* 1500V dielectric strength between switch contacts and case is accomplished by clinching the frame away from the terminals.
