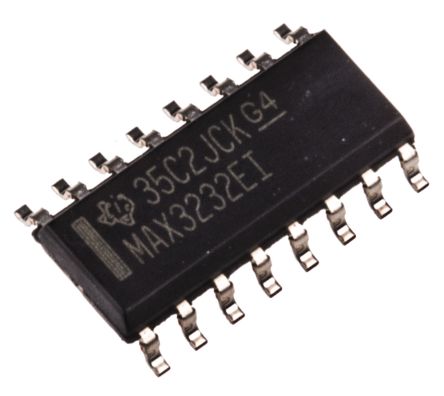

MAX3232EID

TEXAS INSTRUMENTS  MAX3232EID.  线路接收器, RS232, 2驱动器, 3V-5.5电源, SOIC-16

RS-232 线路收发器，双路，Texas Instruments

一系列 RS-232 线路收发器，满足或超出 A/EIA-232-F and ITU v.28 标准的要求。 这些设备通常包括高达 ±15 kV（人机模型）、±8 kV（触点放电）的 ESD 保护，且大多数包含电荷泵电路，以允许从单 3 V 至 5.5 V 电源的操作。 双收发器中的任何一个均包含两个线路驱动器和两个线路接收器，并提供高达 1 Mbps 的工作速度。

### RS-232 线路驱动器和接收器

得捷:
IC TRANSCEIVER FULL 2/2 16SOIC

立创商城:
收发器 250Kbps

欧时:
Texas Instruments MAX3232EID 250kbps 线路收发器, RS-232接口, 2-TX 2-RX, 3.3 V单电源, 16引脚 SOIC封装

艾睿:
Dual Transmitter/Receiver RS-232 16-Pin SOIC Tube

安富利:
Dual Transmitter/Receiver RS-232 16-Pin SOIC

Chip1Stop:
Dual Transmitter/Receiver RS-232 16-Pin SOIC Tube

Verical:
Dual Transmitter/Receiver RS-232 16-Pin SOIC Tube

Newark:
The MAX3232EID device consists of two line drivers, two line receivers, and a dual charge pump circuit with ±15kV IEC ESD protection pin to pin serial-port connection pins, including GND. The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial port connector. The charge pump and four small external capacitors allow operation from a single 3V to 5.5V supply. The devices operate at data signalling rates up to 250kbit/s and a maximum of 30V/μs driver output slew rate.

Win Source:
IC RS232 3V5.5V 15KVESD 16-SOIC

DeviceMart:
IC RS232 3V5.5V 15KVESD 16-SOIC

德州仪器TI:
3- to 5.5-V dual channel 250kbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection
