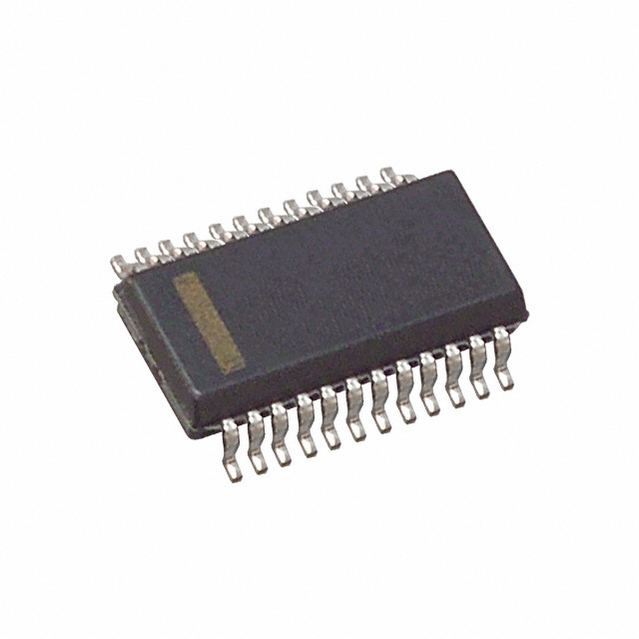

MAX208IDBR

5 -V多通道RS - 232线路驱动器/接收器，具有±15 - kV ESD保护 5-V MULTICHANNEL RS-232 LINE DRIVER/RECEIVER WITH +-15-KV ESD PROTECTION

The MAX208 device consists of four line drivers, four line receivers, and a dual charge-pump circuit with ±15-kV HBM ESD protection pin to pin serial-port connection pins, including GND. The device meets the requirements of A/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 5-V supply. The devices operate at data signaling rates up to 120 kbit/s and a maximum of 30-V/µs driver output slew rate.
