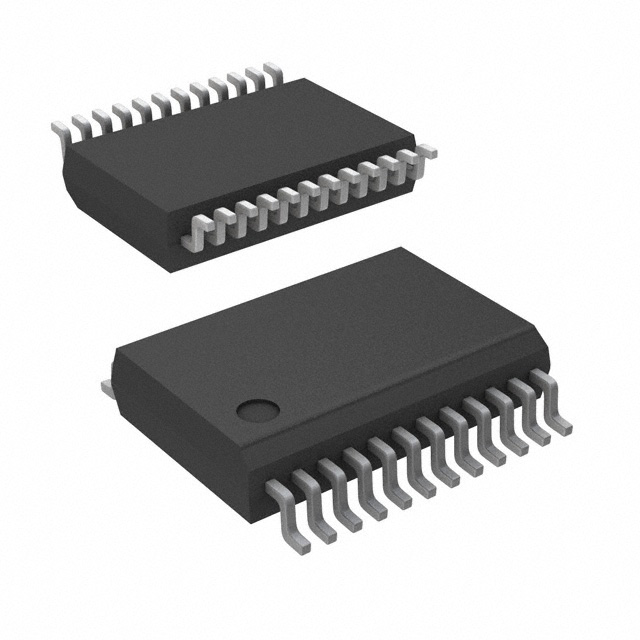

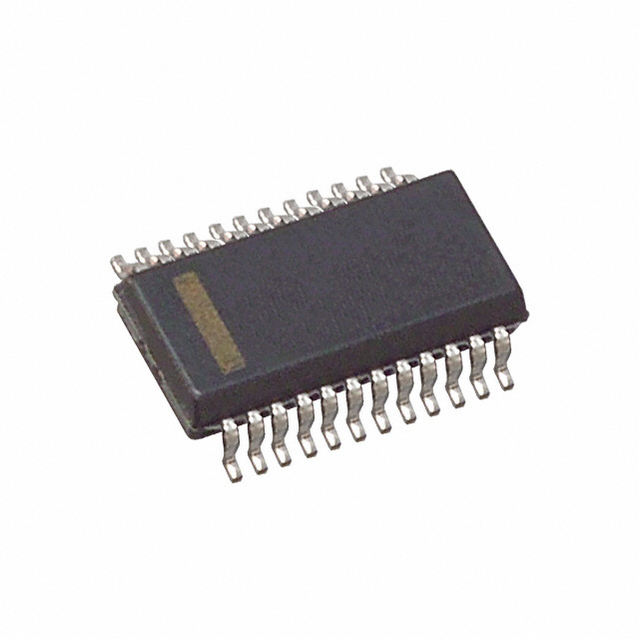

MAX208IDBG4

TEXAS INSTRUMENTS  MAX208IDBG4  收发器, RS232, 4驱动器, 4.5V-5.5电源, SSOP-24

The is a RS-232 multichannel Line Driver/Receiver consists of four line drivers, four line receivers and a dual charge-pump circuit. It has ±15kV HBM ESD protection pin-to-pin serial-port connection pins, including GND. The device meets the requirements of A/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 5V supply. The device operates at data signalling rates up to 120kbps and a maximum of 30V/µs driver output slew rate.

.

Latch-up performance exceeds 100mA per JESD 78, class II

.

Green product and no Sb/Br
