MAC12D

双向晶闸管硅双向晶闸管 Triacs Silicon Bidirectional Thyristors

Designed for high performance full−wave ac control applications where high noise immunity and commutating di/dt are required.

Features

•Blocking Voltage to 800 Volts

•On−State Current Rating of 12 Amperes RMS at 70°C

•Uniform Gate Trigger Currents in Three Quadrants, Q1, Q2, and Q3

•High Immunity to dv/dt − 250 V/s Minimum at 125°C

•High Commutating di/dt − 6.5 A/ms Minimum at 125°C

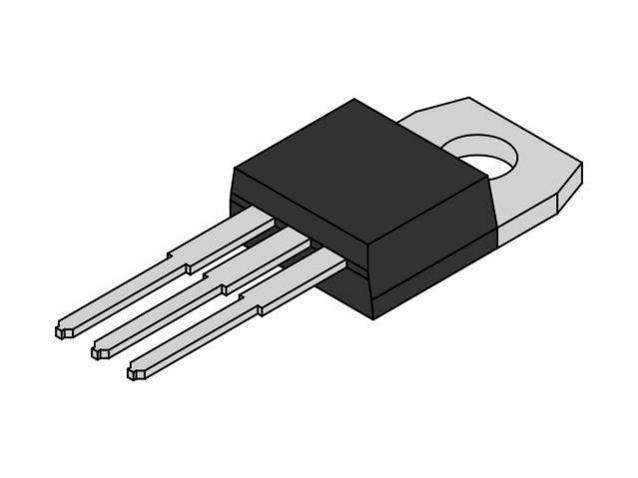

•Industry Standard TO−220 AB Package

•High Surge Current Capability − 100 Amperes

•Pb−Free Packages are Available
