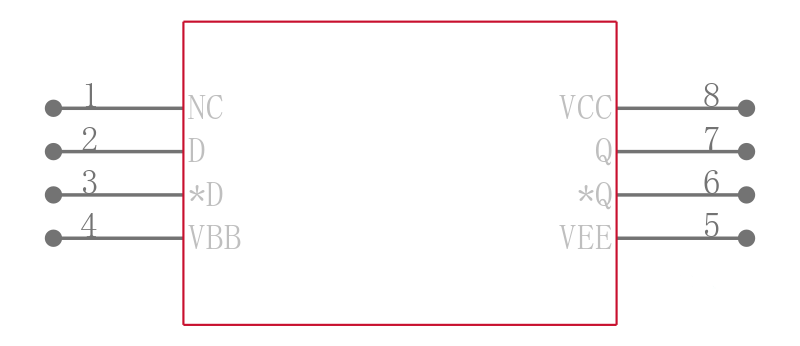

MC100EL16DR2G

MC100EL16 系列 1.75 GHz 5.7 V 表面贴装 ECL 差分接收器 - SOIC-8

The MC10EL/100EL16 is a differential receiver. The device is functionally equivalent to the E116 device with higher performance capabilities. With output transition times significantly faster than the E116 the EL16 is ideally suited for interfacing with high frequency sources. pin, an internally generated voltage supply, is available to this device only. For single-ended input conditions, the unused differential input is connected to V as a switching reference voltage. V may also rebias AC coupled inputs. When used, decouple V via a 0.01 F capacitor and limit current sourcing or sinking to 0.5mA. When not used, VUnder open input conditions pulled to V internal input clamps will force the Q output LOW.The 100 Series contains temperature compensation.

Features

---

 |

.

190 ps Propagation Delay

.

ESD Protection: > 1 KV HBM, > 100 V MM

.

PECL Mode Operating Range: VCC= 4.2 V to 5.7 V with VEE= 0 V

.

NECL Mode Operating Range: VCC= 0 V with VEE= -4.2 V to -5.7 V

.

Internal Input Pulldown Resistors

.

Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test

.

Moisture Sensitivity Level 1

For Additional Information, see Application Note AND8003/D

.

Flammability Rating: UL 94 V-0 @ 0.125 in, Oxygen Index 28 to 34

.

Transistor Count = 47 devices

.

Pb-Free Packages are Available
