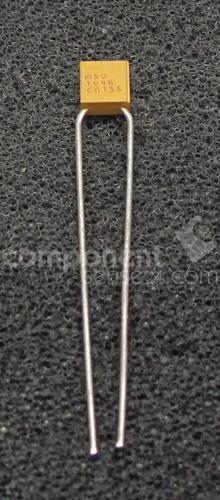

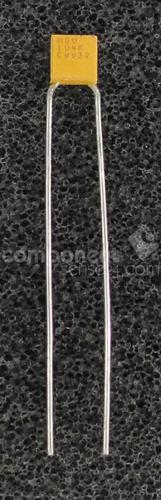

AVX MR055C104KTA. 多层陶瓷电容, Ceralam MR系列, 0.1 µF, ± 10%, X7R, 50 V, 径向引线
The Ceralam MR series Multilayer Ceramic Capacitor with radial leaded terminals. The epoxy moulding provides excellent insulation from a wide variety of environmental conditions, including extreme heat and cold, moisture and humidity. It is ideal for most through-hole applications.
- .
- Moulded epoxy case
- .
- Solderable lead wire termination
艾睿:
Cap Ceramic 0.1uF 50V X7R 10% Radial 5.08mm 125
Verical:
Cap Ceramic 0.1uF 50V X7R 10% Radial 5.08mm 125C Bulk
Newark:
# AVX MR055C104KTA. Multilayer Ceramic Capacitor, Ceralam MR Series, 0.1 - F, - 10%, X7R, 50 V, Radial Leaded
额定电压DC 50.0 V
电容 0.1 µF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Through Hole
引脚数 2
封装 剪切带
引脚间距 5.08 mm
高度 4.83 mm
脚长度 30.0 mm
封装 剪切带
引脚间距 5.08 mm
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 军用与航空, Aerospace, Defence, Military, 国防
RoHS标准 Non-Compliant
REACH SVHC标准 Contains SVHC
军工级 Yes
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MR055C104KTA AVX 艾维克斯 | 当前型号 | 当前型号 |
K104K15X7RF5TH5 威世 | 完全替代 | MR055C104KTA和K104K15X7RF5TH5的区别 |
K104K15X7RF53H5 威世 | 类似代替 | MR055C104KTA和K104K15X7RF53H5的区别 |
CK05BX104K 基美 | 类似代替 | MR055C104KTA和CK05BX104K的区别 |
