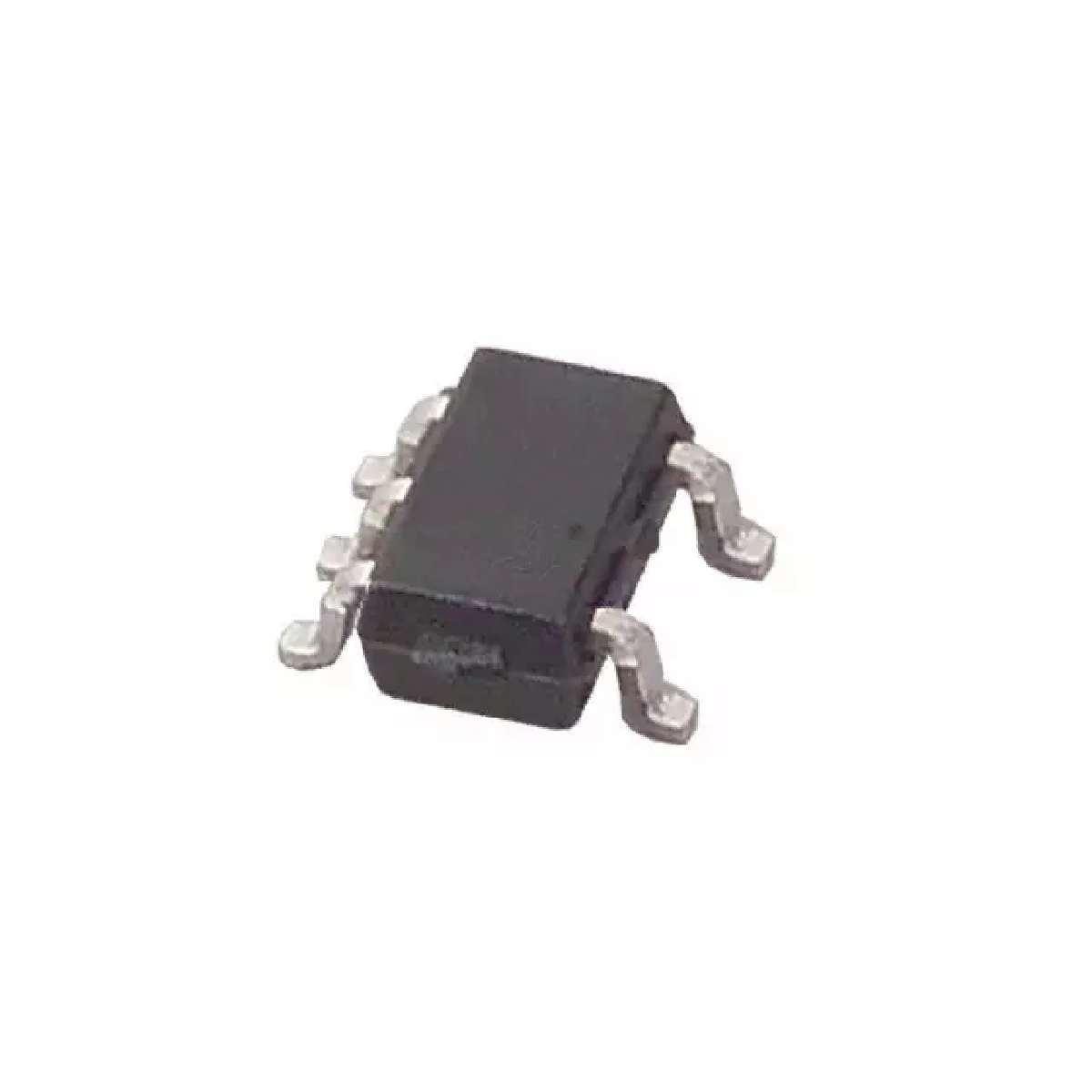

MAXIM INTEGRATED PRODUCTS MAX9021AXK+T 模拟比较器, 轨至轨, 微功率, 1, 3 µs, 2.5V 至 5.5V, SC-70, 5 引脚
通用 CMOS,满摆幅,TTL SC-70-5
得捷:
IC COMPARATOR SNGL SC70-5
立创商城:
MAX9021AXK+T
e络盟:
模拟比较器, 轨至轨, 微功率, 1个比较器, 3 µs, 2.5V 至 5.5V, SC-70, 5 引脚
安富利:
The MAX9021/MAX9022/MAX9024 single/dual/quadcomparators are optimized for low-power consumptionwhile still providing a fast output response. They aredesigned for single-supply applications from 2.5V to5.5V, but can also operate from dual supplies. Thesecomparators have a 3µs propagation delay and consume2.8µA of supply current per comparator over the-40°C to +125°C operating temperature range. Thecombination of low-power, single-supply operationdown to 2.5V, and ultra-small footprint makes thesedevices ideal for portable applications.The MAX9021/MAX9022/MAX9024 have 4mV of built-inhysteresis to provide noise immunity and prevent oscillationseven with a slow-moving input signal. The inputcommon-mode range extends from the negative supplyto within 1.1V of the positive supply. The design of thecomparator-output stage substantially reduces switchingcurrent during output transitions, eliminating powersupplyglitches.The MAX9021 single comparator is available in tiny 5-pin SC70 and SOT23 packages. The MAX9022 dual comparator is available in 8-pin SOT23, µMAX®, and SO packages, and the MAX9024 quad comparator isavailable in 14-pin TSSOP and SO packages.
Chip1Stop:
Comparator Single R-R O/P ?2.75V/5.5V 5-Pin SC-70 T/R
Newark:
# MAXIM INTEGRATED PRODUCTS MAX9021AXK+T Analog Comparator, Rail to Rail, Micropower, 1, 3 µs, 2.5V to 5.5V, SC-70, 5 Pins
DeviceMart:
IC COMPARATOR SGL SC70-5
Win Source:
IC COMPARATOR SNGL SC70-5
通道数 1
针脚数 5
共模抑制比 100 dB
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.5 V
安装方式 Surface Mount
引脚数 5

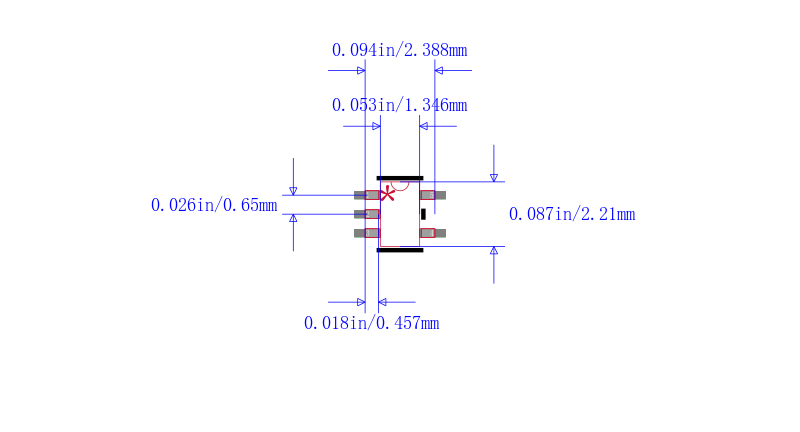

封装 SC-70-5
封装 SC-70-5
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Power Management, 便携式器材, 信号处理, Portable Devices, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX9021AXK+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX9021AUK+T 美信 | 完全替代 | MAX9021AXK+T和MAX9021AUK+T的区别 |
MAX9021AXK-T 美信 | 完全替代 | MAX9021AXK+T和MAX9021AXK-T的区别 |
MAX9021AUK-T 美信 | 类似代替 | MAX9021AXK+T和MAX9021AUK-T的区别 |
