M22-FW-24A

M22-FW-24A图片1
M22-FW-24A图片2
M22-FW-24A图片3
M22-FW-24A图片4
M22-FW-24A图片5
M22-FW-24A图片6
M22-FW-24A图片7
M22-FW-24A图片8
M22-FW-24A图片9
M22-FW-24A概述

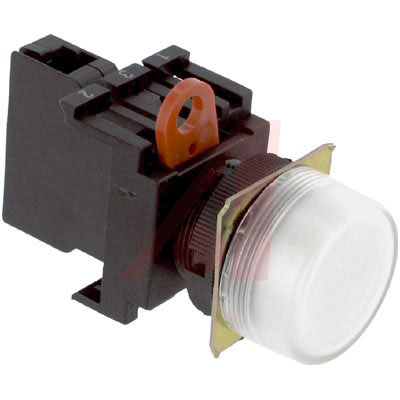

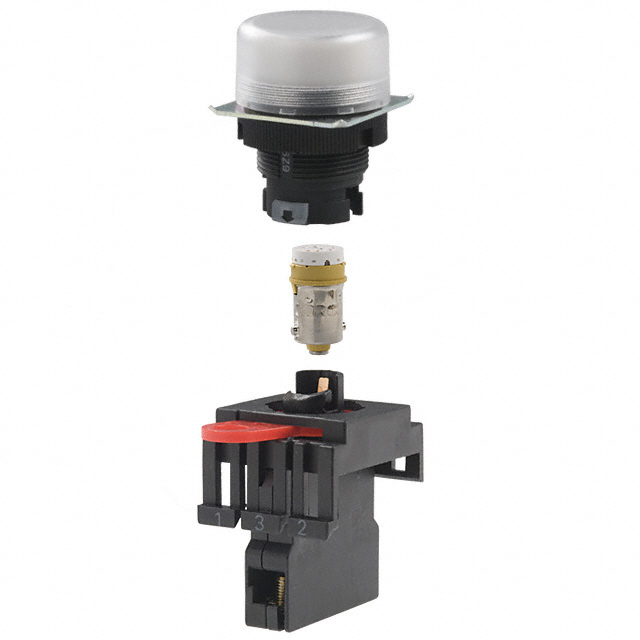

Omron M22 白色 导向灯灯头, 面板安装

LED Indicator, White Color, Mounting Hole Diameter 25 mm, Panel Mount

Complete line of illuminated and non-illuminated pushbuttons, pilot lights, selector switches, key-type selector switches, E-Stop switches, nameplates, enclosures and accessories. Available through your local Allied sales office.

Complete offering of Nameplates both standard and custom engraving. Legend plates are available in adhesive backed plastic, square, rectangular and shield shape with black background and white letters or white background with black letters. Pushbutton enclosures are available in plastic and metal.

* CE Approved, UL and CSA Approved

* IP65 Rated Industrial Devices

* Two-Piece Snap-Together Construction

* No Tools Required Installation

* N.C. Contacts Approved for Use in Safety Circuits

M22-FW-24A中文资料参数规格
技术参数

额定电流 8 mA

触点额定电流 10.0 mA

额定电压 24 VAC

电源电压 24VAC, 24VDC

封装参数

安装方式 Panel

外形尺寸

高度 54.7 mm

直径 29.7 mm

物理参数

颜色 White

其他

产品生命周期 Obsolete

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买M22-FW-24A
型号: M22-FW-24A
制造商: Omron 欧姆龙
描述:Omron M22 白色 导向灯灯头, 面板安装
