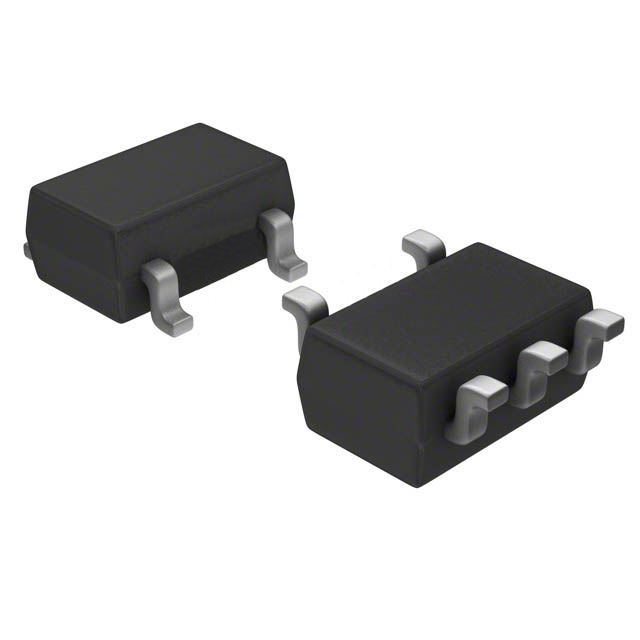

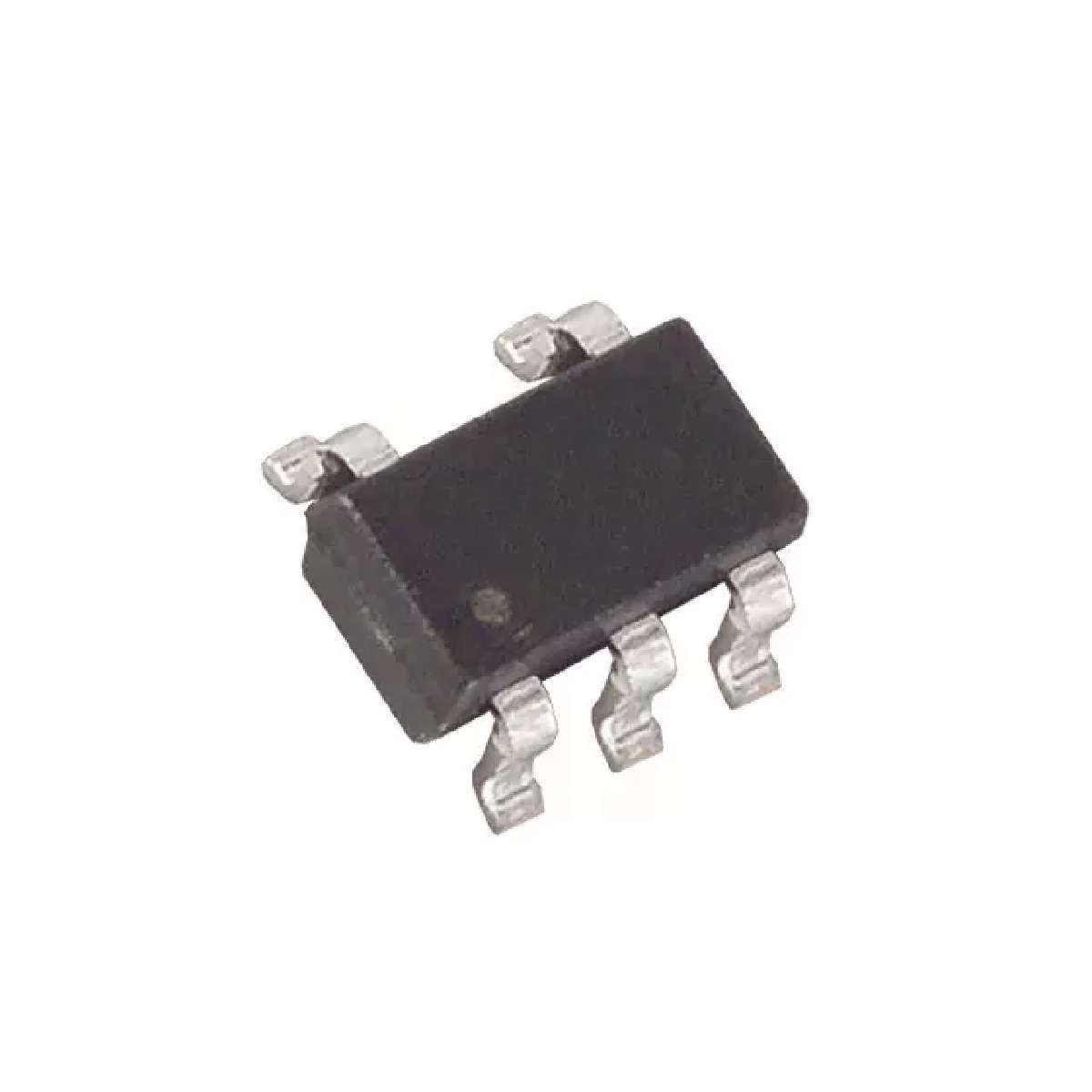

MAX9100EUK+T

MAXIM INTEGRATED PRODUCTS  MAX9100EUK+T  模拟比较器, 微功率, 1, 4.5 µs, 1V 至 5.5V, SOT-23, 5 引脚

The is a micropower comparator in 5 pin SOT-23 package. This low power, ultra low single supply voltage comparator is optimized for single cell systems and it is fully specified for operation from single supply of 1V to 5.5V. This ultra low voltage operation, 5µA quiescent current consumption and small footprint make the MAX9100 ideal for use in battery powered systems. A wide input common mode range includes negative rail and rail to rail output swing allows almost all of the power supply to be used for signal voltage. The propagation delay is less than 4µs and rise/fall time is 100ns. The MAX9100 has push-pull CMOS output stage that sinks and sources current with large internal output drivers to allow rail to rail output swings with loads up to 5mA. It is used in closed sensor applications.

.

Ultra low voltage down to 1V

.

Operating temperature range from -40°C to 85°C

.

High output drive capability, 5mA sink and source current

.

No output phase reversal for overdriven inputs

.

Input offset voltage of ±3mV at TA = +25°C

.

Input offset current of ±0.1nA at VCC = +5.5V, TA = +25°C

.

CMRR of 68dB at TA = +25°C and PSRR of 66dB at 1V

.

Input bias current of ±5nA at VCC = +5.5V, TA = +25°C
