MBRS330T3

表面贴装肖特基整流电源 Surface Mount Schottky Power Rectifier

SCHOTTKY BARRIER RECTIFIERS 3.0 AMPERES 20, 30, 40, 60 VOLTS

. . . employing the Schottky Barrier principle in a large area metal–to–silicon power diode. State–of–the–art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes, in surface mount applications where compact size and weight are critical to the system.

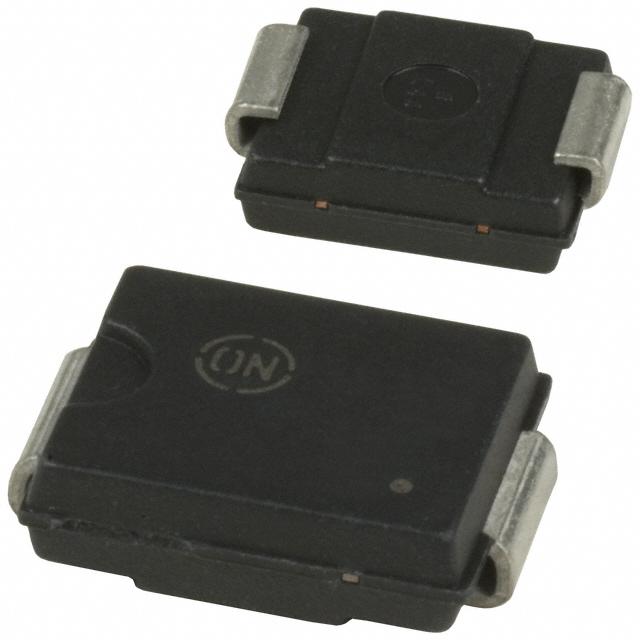

•Small Compact Surface Mountable Package with J–Bend Leads

•Rectangular Package for Automated Handling

•Highly Stable Oxide Passivated Junction

•Very Low Forward Voltage Drop

0.5 Volts Max @ 3.0 A, TJ= 25°C

•Excellent Ability to Withstand Reverse Avalanche Energy Transients

•Guardring for Stress Protection
