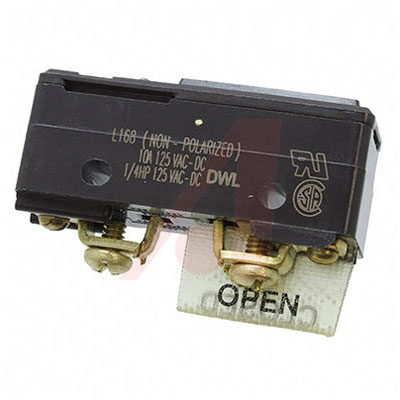

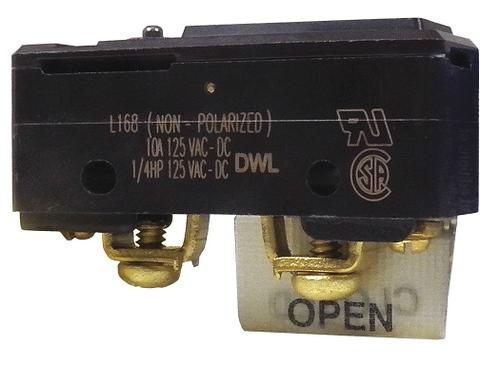

HONEYWELL MT-4R-A28 微动开关, 针柱塞式, SPDT 10A 125V
** Premium Basic Switches - DT and MT Series**
The Honeywell premium large snap-action micro switches series are designed for repeatability and enhanced life. These series of precision switches feature application specific characteristics, from double-break circuitry to handling power duty electrical loads. DT Series switches consist of two independent single-pole double throw contacts in one housing controlled by an integral common actuator. The DPDT contact configuration provides a contact for the control circuit and a different contact for the signal or auxiliary circuit. MT Series magnetic blow-out switches are designed to switch high-capacity electrical loads. An integral magnet around the contact gap deflects the arc away from the contacts, extending switch life. Vents between the cover and housing allow the hot gas to escape.
接触器类型 Pin Plunger
额定电流 10 A
触点类型 SPDT
额定电流Max 10A @125VAC, 125VDC
额定功率Max 186.42 VA
工作温度Max 82 ℃
工作温度Min -55 ℃
额定电压 125 VAC
额定电压DC Max 250 V
额定电压AC Max 250 V
安装方式 Screw
高度 33.91 mm
触点材质 Silver
工作温度 -55℃ ~ 82℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509040
