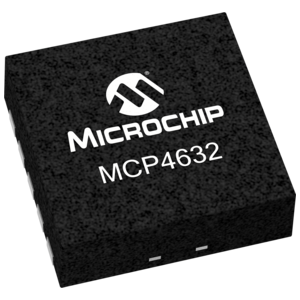

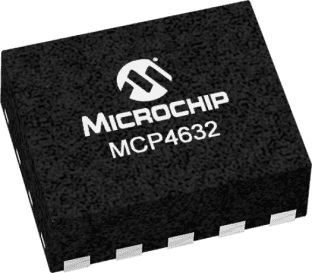

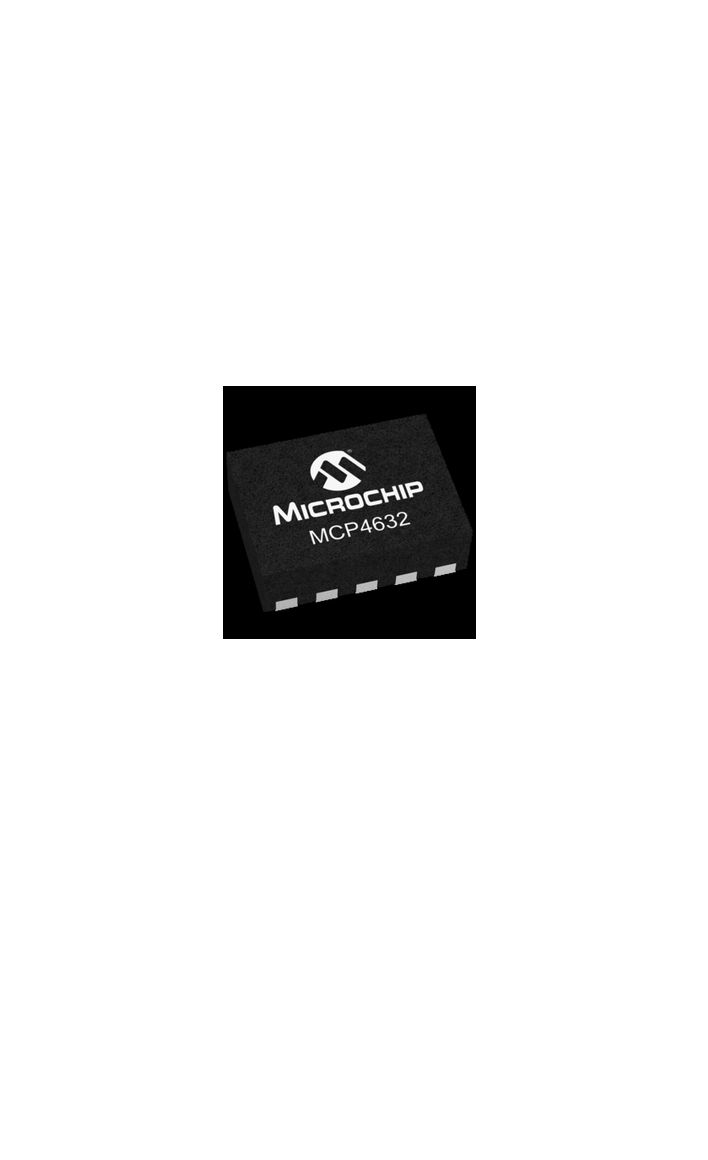

7/8位单/双I2C数字电位器具有易失性存储器 7/8-Bit Single/Dual I2C Digital POT with Volatile Memory
This digital potentiometer from Technology will be incredibly useful when changing the resistance in your application. This digital potentiometer has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device uses a single power supply.
电源电压DC 1.80V min
容差 ±20 %
电路数 2
针脚数 128
电阻 50 kΩ
阻值偏差 ±20 %
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.8V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 10

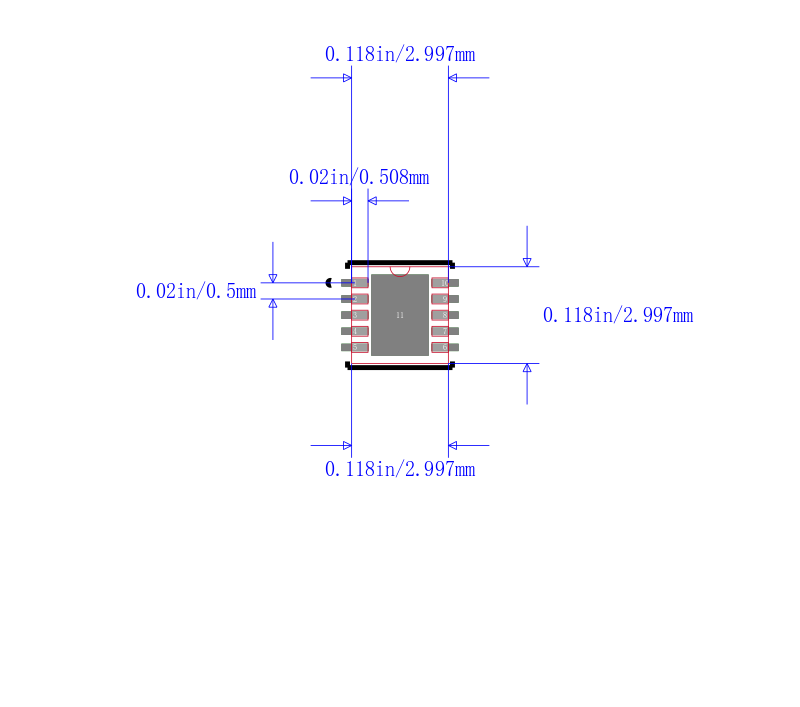

封装 DFN-10
封装 DFN-10
工作温度 -40℃ ~ 125℃
温度系数 ±150 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
