MCP4631T-503E/ML

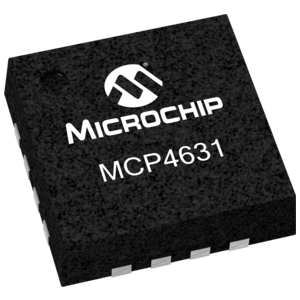

MCP4631T-503E/ML图片1
MCP4631T-503E/ML图片2

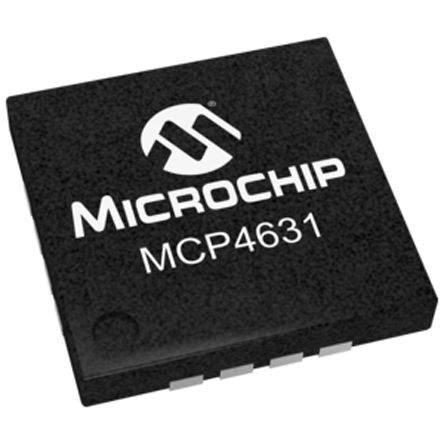

MCP4631T-503E/ML图片3
MCP4631T-503E/ML图片4
MCP4631T-503E/ML图片5
MCP4631T-503E/ML图片6
MCP4631T-503E/ML图片7

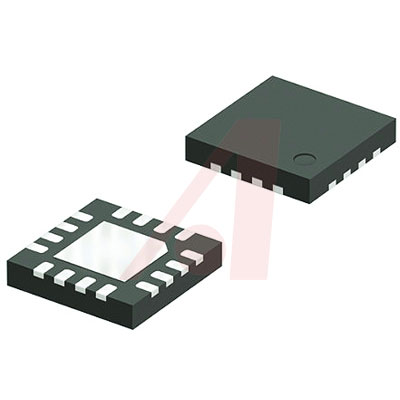

MCP4631T-503E/ML图片8
MCP4631T-503E/ML图片9
MCP4631T-503E/ML概述

MCP453x/455x/463x/465x 数字电位计### 数字电位计 - Microchip

MCP453x/455x/463x/465x 数字电位计


得捷:
IC DGTL POT 50KOHM 129TAP 16QFN


立创商城:
MCP4631T-503E/ML


欧时:
Microchip MCP4631T-503E/ML 2通道 50kΩ 129位置 数字电位计, 串行 - I2C接口, 16引脚 QFN封装


贸泽:
Digital Potentiometer ICs Dual 7B V I2C POT


艾睿:
Ideal for radio frequency processing circuits this MCP4631T-503E/ML digital potentiometer from Microchip Technology belongs in your design. This digital potentiometer has a temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device uses a single power supply.


Allied Electronics:
50K 128 Dual I2C Dig.Potentiometer QFN16


安富利:
Digital Potentiometer 128POS 50KOhm Dual 16-Pin QFN EP T/R


Chip1Stop:
Digital Potentiometer 128POS 50KOhm Dual 16-Pin QFN EP T/R


DeviceMart:
IC DGTL POT 50K 129TAPS 16-QFN


MCP4631T-503E/ML中文资料参数规格
技术参数

电源电压DC 1.80V min

容差 ±20 %

电路数 2

针脚数 128

电阻 50 kΩ

阻值偏差 ±20 %

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 1.8V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 1.8 V

封装参数

安装方式 Surface Mount

引脚数 16

封装 QFN-16

外形尺寸

长度 4 mm

宽度 4 mm

高度 0.95 mm

封装 QFN-16

物理参数

工作温度 -40℃ ~ 125℃

温度系数 ±150 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

MCP4631T-503E/ML引脚图与封装图
MCP4631T-503E/ML引脚图

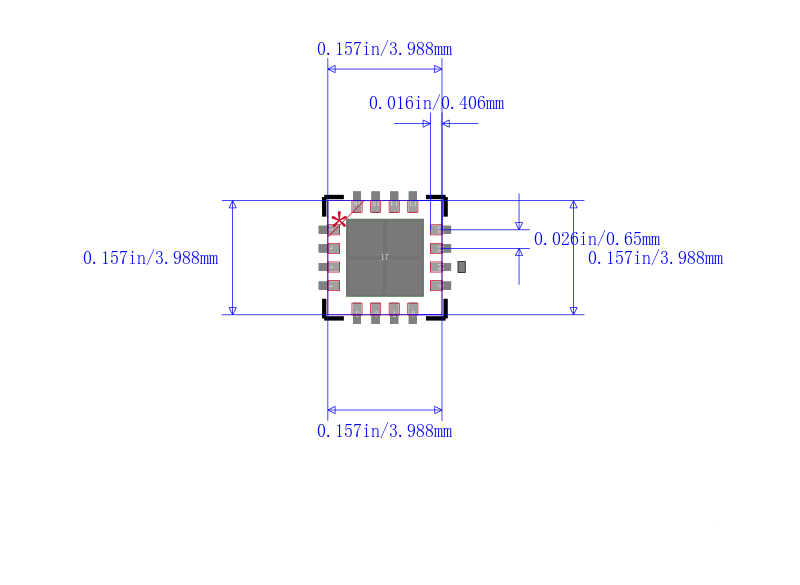

MCP4631T-503E/ML封装图
MCP4631T-503E/ML封装焊盘图
在线购买MCP4631T-503E/ML
型号: MCP4631T-503E/ML
制造商: Microchip 微芯
描述:MCP453x/455x/463x/465x 数字电位计 ### 数字电位计 - Microchip
