MCP4451-104E/ML

MCP4451-104E/ML图片1
MCP4451-104E/ML图片2
MCP4451-104E/ML图片3
MCP4451-104E/ML图片4
MCP4451-104E/ML图片5
MCP4451-104E/ML图片6
MCP4451-104E/ML图片7
MCP4451-104E/ML图片8
MCP4451-104E/ML图片9
MCP4451-104E/ML概述

Digital Potentiometer 256POS 100KΩ Quad Automotive 20Pin QFN EP Tube

The digital potentiometer from Technology is easy to use for your varied resistance application. This digital potentiometer has a temperature range of -40 °C to 125 °C. This device comes in tube packaging. This device uses a single power supply.


立创商城:
MCP4451-104E/ML


得捷:
IC DGT POT 100KOHM 257TAP 20QFN


贸泽:
Digital Potentiometer ICs 100k I2Cquad Ch Pot 8bit volatile memory


艾睿:
Digital Potentiometer 100kOhm 256POS Volatile Linear Automotive 20-Pin QFN EP Tube


Allied Electronics:
100k, I2C,   quad channel Pot, 8-bit, volatile memory, QFN


安富利:
Digital Potentiometer 256POS 100KOhm Quad 20-Pin QFN EP Tube


Chip1Stop:
Digital Potentiometer 256POS 100kOhm Quad Automotive 20-Pin QFN EP Tube


Verical:
Digital Potentiometer 100kOhm 256POS Volatile Linear Automotive 20-Pin QFN EP Tube


DeviceMart:
IC POT 100K QUAD 8BIT 20QFN


MCP4451-104E/ML中文资料参数规格
技术参数

电源电压DC 1.80V min

容差 ±20 %

供电电流 0.0025 mA

电路数 4

针脚数 256

电阻 100 kΩ

阻值偏差 ±20 %

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 1.8V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 1.8 V

封装参数

安装方式 Surface Mount

引脚数 20

封装 QFN-20

外形尺寸

封装 QFN-20

物理参数

工作温度 -40℃ ~ 125℃

温度系数 ±150 ppm/℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

MCP4451-104E/ML引脚图与封装图
MCP4451-104E/ML引脚图
MCP4451-104E/ML封装图

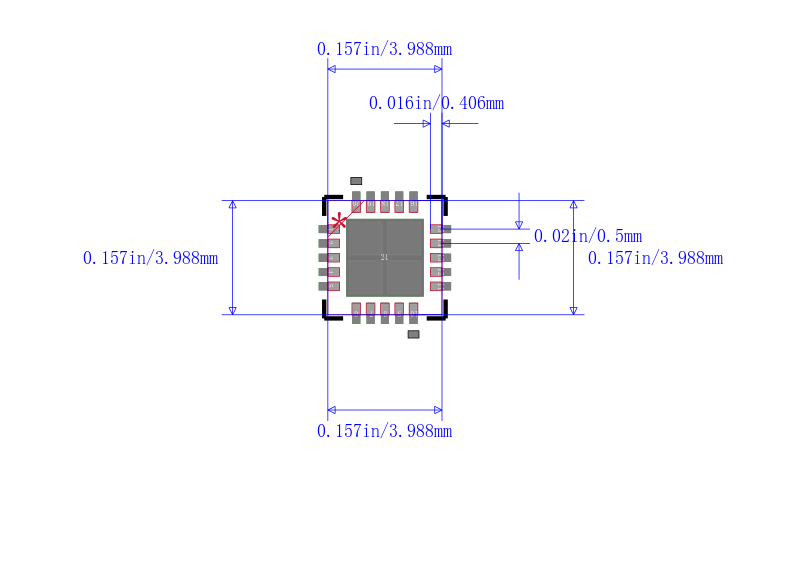

MCP4451-104E/ML封装焊盘图
在线购买MCP4451-104E/ML
型号: MCP4451-104E/ML
制造商: Microchip 微芯
描述:Digital Potentiometer 256POS 100KΩ Quad Automotive 20Pin QFN EP Tube
替代型号MCP4451-104E/ML
型号/品牌 代替类型 替代型号对比

MCP4451-104E/ML

Microchip 微芯

当前型号

当前型号

MCP4451T-104E/ML

微芯

完全替代

MCP4451-104E/ML和MCP4451T-104E/ML的区别
