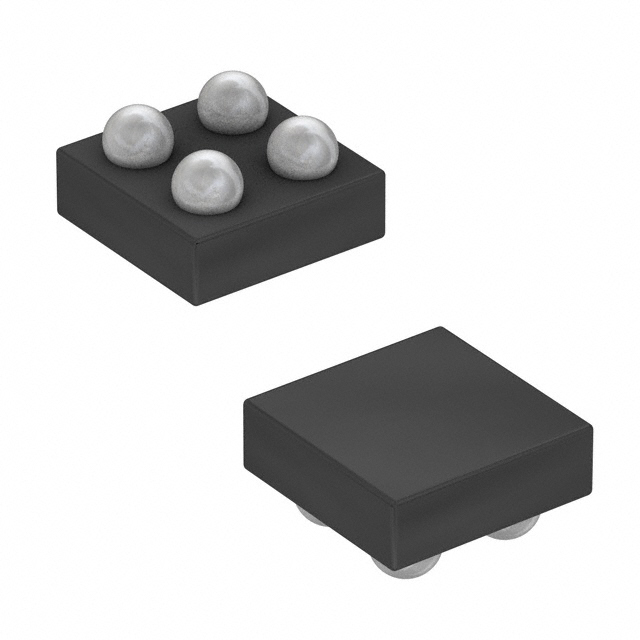

Comparator Single R-R I/P 5.5V 4Pin UCSP T/R
通用 开路漏极 4-UCSP(1.05x1.05)
得捷:
IC COMPARATOR SGL LP 4UCSP
安富利:
The MAX9060–MAX9064 are small single comparators, ideal for a wide variety of portable electronics applications such as cell phones, media players, and notebooks that have extremely tight board space and power constraints. These comparators are offered in both, a miniature 4-bump UCSP™ package with a 1mm x 1mm footprint as small as two 0402 resistors, and a 5-pin SOT23 package.The MAX9060–MAX9064 feature an input voltage range of -0.3V to +5.5V independent of supply voltage. These devices maintain high impedance at the inputs even when powered down VCC or VREF = 0V. They also feature internal filtering to provide high RF immunity.The MAX9060 and MAX9061 have open-drain outputs and draw quiescent supply current from a user-supplied reference voltage, VREF, between 0.9V and 5.5V. These devices consume only 100nA max supply current and operate over the extended -40°C to +85°C temperature range.The MAX9062, MAX9063 and MAX9064 are single comparators with an internal 0.2V reference. These devices feature either a push-pull or an open-drain output. They consume only 700nA max supply current. The MAX9062, MAX9063, and MAX9064 operate down to VCC = 1V over the extended -40°C to +85°C temperature range.
DeviceMart:
IC COMPARATOR SGL LP 4UCSP
Win Source:
IC COMPARATOR SGL LP 4UCSP
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX9060EBS+TG45 Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX9061EBS+TG45 美信 | 功能相似 | MAX9060EBS+TG45和MAX9061EBS+TG45的区别 |
MAX9060EBS+G45 美信 | 功能相似 | MAX9060EBS+TG45和MAX9060EBS+G45的区别 |
MAX9061EBS+G45 美信 | 功能相似 | MAX9060EBS+TG45和MAX9061EBS+G45的区别 |
