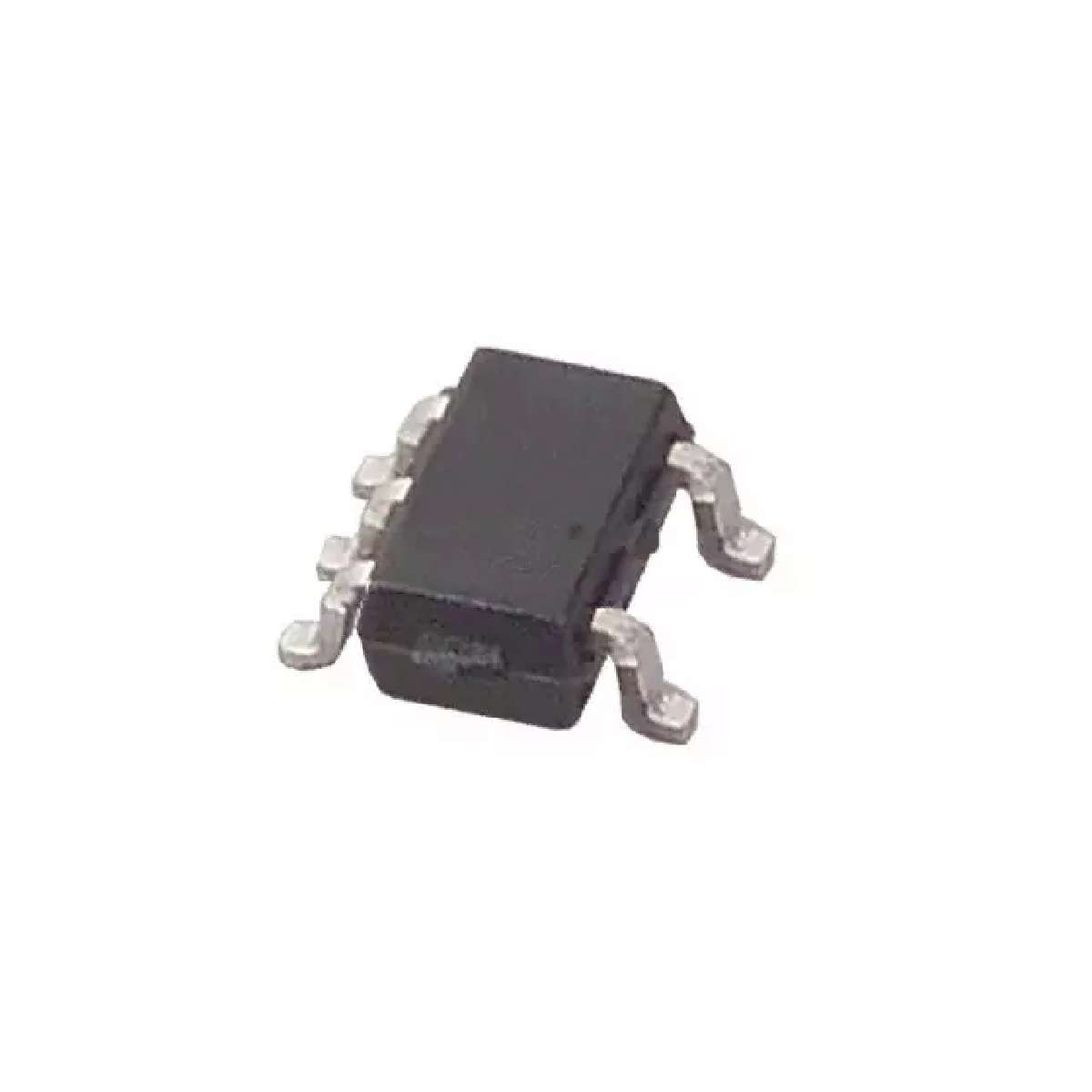

MAX9118EXK+T

MAXIM INTEGRATED PRODUCTS  MAX9118EXK+T  模拟比较器, 轨道外, 纳功率, 1, 16 µs, 1.6V 至 5.5V, SC-70, 5 引脚

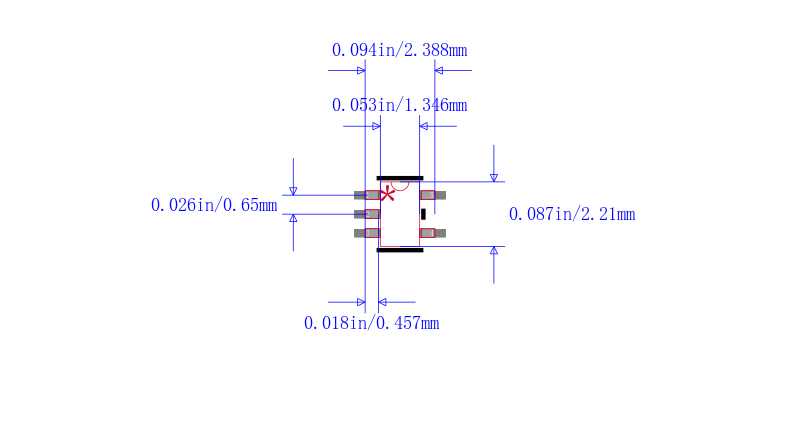

The is a nanopower, beyond the rails comparator with reference in 5 pin SC-70 package. This device operates down to 1.6V. It has onboard 1.252V ±1.75% reference and draws an ultra-low supply current of only 600nA. These features make the MAX9118 comparator ideal for all 2 cell battery monitoring/management applications. The unique design of output stage limits supply current surges while switching, virtually eliminating the supply glitches typical of many other comparators. This design also minimizes overall power consumption under dynamic conditions. The MAX9118 has open-drain output stage that makes it suitable for mixed voltage system design. It is used in ultra low power systems, threshold detectors/discriminators, sensing at ground or supply line, telemetry and remote systems.

.

Supply voltage range from 1.6V to 5.5V at TA = +25°C

.

Operating temperature range from -40°C to 85°C

.

Input voltage range extends 200mV beyond the rails

.

Crowbar current free switching

.

Internal hysteresis for clean switching

.

No phase reversal for overdriven inputs

.

Input offset voltage of 1mV and input bias current of 0.15nA at TA = +25°C

.

Power supply rejection ratio of 0.1mV/V VCC = 1.6V to 5.5V, TA = +25°C

.

High to low propagation delay of 16µs at VCC = 1.6V and 14µs at VCC = 5V

.

Low to high propagation delay of 16µs at VCC = 1.6V and 45µs at VCC = 5V
