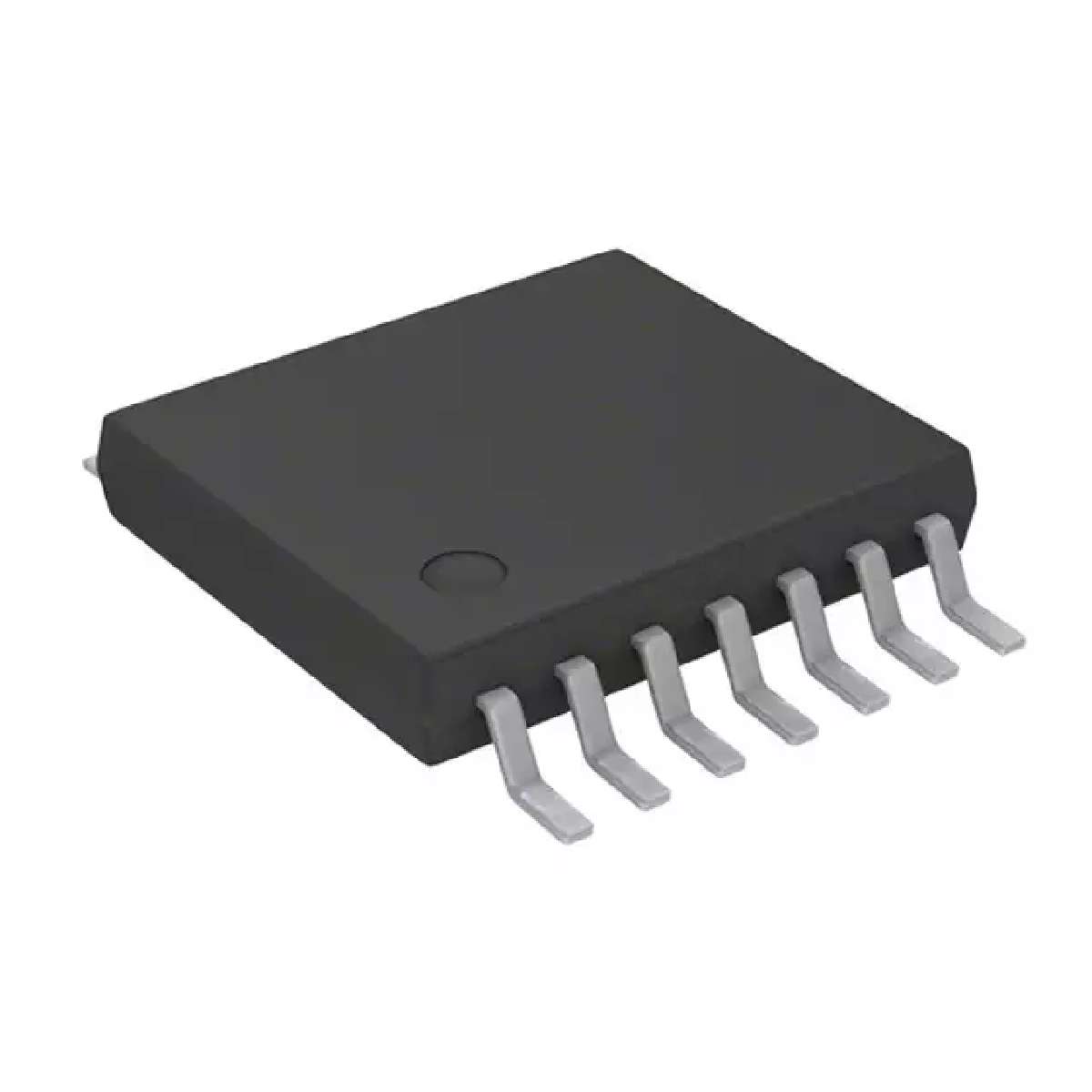

MCP6549-E/ST

漏极开路输出亚微安比较 Open-Drain Output Sub-Microamp Comparators

Description

The Technology Inc. MCP6546/7/8/9 family of comparators is offered in single MCP6546, MCP6546R, MCP6546U, single with chip select MCP6548, dual MCP6547 and quad MCP6549 configurations. The outputs are open-drain and are capable of driving heavy DC or capacitive loads.

Features

• Low Quiescent Current: 600 nA/comparator typ.

• Rail-to-Rail Input: VSS - 0.3V to VDD + 0.3V

• Open-Drain Output: VOUT ≤ 10V

• Propagation Delay: 4 µs typ., 100 mV Overdrive

• Wide Supply Voltage Range: 1.6V to 5.5V

• Single available in SOT-23-5, SC-70-5

.

packages

• Available in Single, Dual and Quad

• Chip Select CS with MCP6548

• Low Switching Current

• Internal Hysteresis: 3.3 mV typ.

• Temperature Range:

\- Industrial: -40°C to +85°C

\- Extended: -40°C to +125°C

Typical Applications

• Laptop Computers

• Mobile Phones

• Metering Systems

• Hand-held Electronics

• RC Timers

• Alarm and Monitoring Circuits

• Windowed Comparators

• Multi-vibrators
