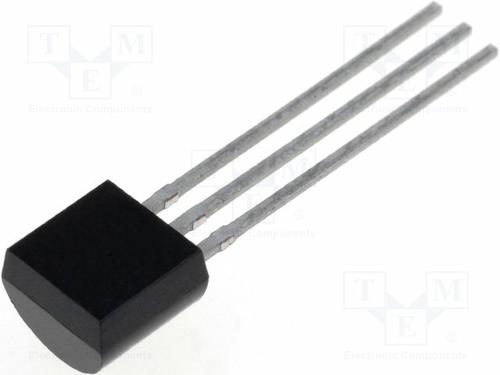

MC79L12ACPG

ON SEMICONDUCTOR  MC79L12ACPG  线性稳压器, 固定, 7912, 负向, -35V至-19V输入, -12V和0.1A输出, TO-92-3

MC79L00 线性稳压器，

**ON Semiconductor** **MC79L00** 系列线性稳压器为负电压稳压器。 该系列具有 5 V、12 V 或 15 V 的固定输出电压。 无需任何外部设备，适用于需要100 mA 的应用。 ON Semiconductor MC79L00 系列具有内部短路电流限制以及热过载保护，使其成为强大的集成电路 IC。 应用包括卡式稳压或需要小电流输出的负电压等级应用。 工作时无需外部设备。

提供无铅封装

### 线性稳压器，On Semiconductor

欧时:
ON Semiconductor MC79LxxA 系列 MC79L12ACPG 负电压 线性稳压器, 最大为 -35 V输入, -12 V输出

立创商城:
MC79L12ACPG

得捷:
IC REG LINEAR -12V 100MA TO92-3

e络盟:
线性稳压器, 固定, 7912, 负向, -35V至-19V输入, -12V和0.1A输出, TO-92-3

艾睿:
Standard Regulator Neg -12V 0.1A 3-Pin TO-92 Bag

Allied Electronics:
MC79L12ACPG, Single Negative Voltage Regulator 100mA -12 V, 3-Pin TO-92

安富利:
The MC79L00 negative linear voltage regulator is an inexpensive, easy-to-use device suitable for numerous applications requiring up to100 mA. Like the higher powered MC7900 Series negative regulators, this linear voltage regulator features thermal shutdown and current limiting, making it remarkably rugged. In most applications, no external components are required for operation. The MC79L00 linear voltage regulator is useful for on-card regulation or any other application where a regulated negative voltage at a modest current level is needed. This regulator offers substantial advantages over the common resistor/zener diode approach.

Chip1Stop:
LDO Regulator Neg -12V 0.1A 3-Pin TO-92 Bag

TME:
Voltage regulator; linear, fixed; -12V; 0.1A; TO92; THT

Verical:
Standard Regulator Neg -12V 0.1A 3-Pin TO-92 Bag

Newark:
# ON SEMICONDUCTOR  MC79L12ACPG  Linear Voltage Regulator, 7912, Fixed, Negative, -35V To -19V In, -12V And 0.1A Out, TO-92-3

DeviceMart:
IC REG LDO -12V .1A TO92

Win Source:
IC REG LDO -12V 0.1A TO92-3
