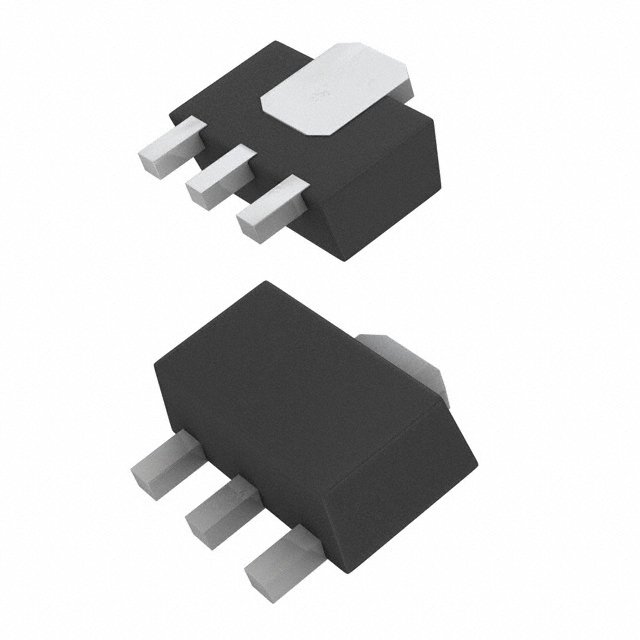

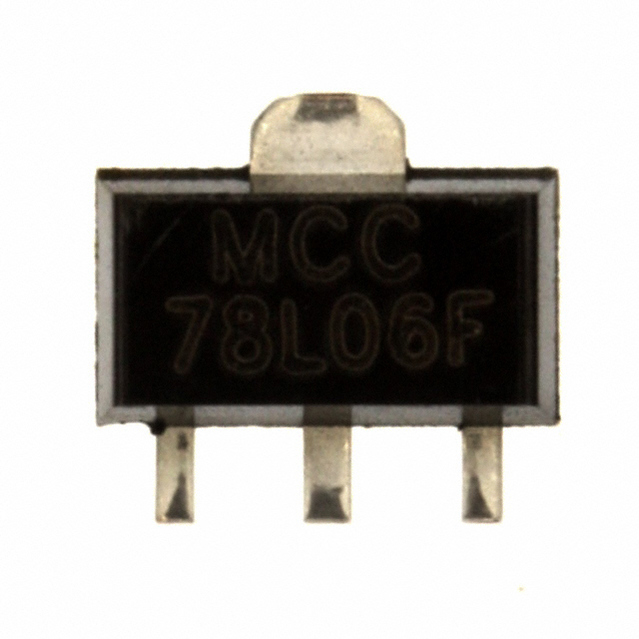

Standard Regulator Pos 6V 0.1A 4Pin3+Tab SOT-89
PMIC - 稳压器 - 线性 正 固定 1 输出 100mA SOT-89
得捷:
IC REG LINEAR 6V 100MA SOT89
艾睿:
Having trouble maintaining a steady voltage? This standard MC78L06F-TP linear regulator from Micro Commercial Components will give you control over the voltage levels of your circuit. Its typical dropout voltage at current is 1.7@40mA V. This voltage regulation device&s;s single output can produce a current up to 0.1 A. This will operate at a minimum voltage of 8.5 V and a maximum voltage of 30 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 6 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 80mV and line regulation of 175mV. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -20 °C and a maximum of 120 °C.
Chip1Stop:
Standard Regulator Pos 6V 0.1A 4-Pin3+Tab SOT-89 T/R
DeviceMart:
IC REG LDO 6V .1A SOT-89
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 6V 100mA SOT-89
输出接口数 1
输入电压DC 30.0V max
输出电压 6 V
输出电流 100 mA
供电电流 6 mA
跌落电压 1.7V @40mA
输入电压Max 30 V
输入电压Min 8.5 V
输出电压Min 6 V
输出电流Max 0.1 A
工作温度Max 120 ℃
工作温度Min -20 ℃
输入电压 8V ~ 30V
安装方式 Surface Mount
引脚数 4
封装 SOT-89
封装 SOT-89
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC78L06F-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
MC78L06BP-AP 美微科 | 类似代替 | MC78L06F-TP和MC78L06BP-AP的区别 |
78L06MG-AB3-R 友顺 | 功能相似 | MC78L06F-TP和78L06MG-AB3-R的区别 |
