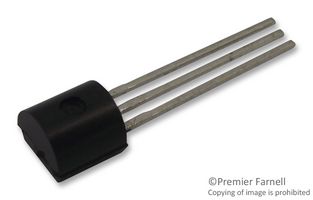

ON SEMICONDUCTOR MC78L15ABPG 线性稳压器直流/直流转换器, 23 V, 35 V, 15 V, 100 mA, TO-92, 3 引脚 新
The is a fixed output positive voltage regulator in 3 pin TO-92 package. This inexpensive, easy to use device is suitable for multitude of applications that require regulated supply of up to 100mA. Like higher powered MC7800 and MC78M00 series devices, this regulator features internal short circuit current limiting and internal thermal shutdown making it remarkably rugged. No external components are required with MC78L15A device in many applications. This device offers a substantial performance advantage over traditional zener diode-resistor combination as output impedance and quiescent current are substantially reduced.
无卤素状态 Halogen Free
输出接口数 1
输出电压 15 V
输出电流 100 mA
电路数 4
针脚数 3
极性 P-Channel
跌落电压 1.7V @40mA
输入电压Max 35 V
输入电压Min 23 V
输出电压Min 15 V
输出电流Max 0.1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 ≤35 V
安装方式 Through Hole
引脚数 3
封装 TO-226-3
封装 TO-226-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 电源管理, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC78L15ABPG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC78L15ABPRAG 安森美 | 完全替代 | MC78L15ABPG和MC78L15ABPRAG的区别 |
MC78L15ABPRPG 安森美 | 完全替代 | MC78L15ABPG和MC78L15ABPRPG的区别 |
L78L15ABZ 意法半导体 | 完全替代 | MC78L15ABPG和L78L15ABZ的区别 |
