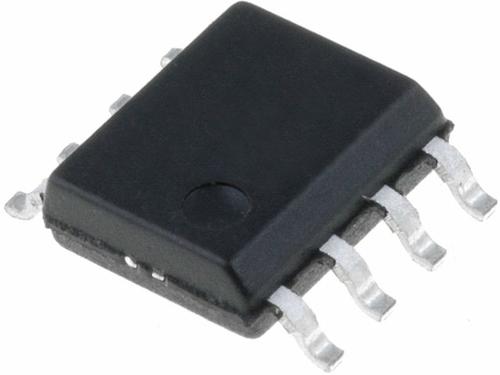

MC78L15ACDG

ON SEMICONDUCTOR  MC78L15ACDG  线性稳压器, 固定, 7815, 正向, 23V至35V输入, 15V和0.1A输出, SOIC-8

MC78L00A 线性稳压器，

**ON Semiconductor** MC78L00A 系列为线性稳压器，涵盖了输出为 5V MC78L05A 到 24V MC78L24A 的广泛固定输出电压。

这些正稳压器提供热关闭和内部电流限制。 无需外部设备，它们可产生 100 mA 的输出电流。 还提供铅封装。

### 线性稳压器，On Semiconductor

得捷:
IC REG LINEAR 15V 100MA 8SOIC

立创商城:
MC78L15ACDG

欧时:
### MC78L00A 线性稳压器，ON Semiconductor**ON Semiconductor** MC78L00A 系列为线性稳压器，涵盖了输出为 5V MC78L05A 到 24V MC78L24A 的广泛固定输出电压。 这些正稳压器提供热关闭和内部电流限制。 无需外部设备，它们可产生 100 mA 的输出电流。 还提供铅封装。 ### 线性稳压器，On Semiconductor

e络盟:
线性稳压器, 固定, 7815, 正向, 23V至35V输入, 15V和0.1A输出, SOIC-8

艾睿:
Never worry about components not turning off and on due to lack of voltage with this standard MC78L15ACDG linear regulator from ON Semiconductor. Its typical dropout voltage at current is 1.7@40mA V. This voltage regulation device&s;s single output can produce a current up to 0.1 A. It only needs a voltage that does not exceed 35 V to effectively power your circuit. With a fixed output that has a voltage of 15 V, this is power management at its best. At a load regulation of 150mV and line regulation of 300mV a constant current can be produced at the output of your circuit. This product comes in rail packaging to keep individual parts separated and protected. This voltage regulation device has a minimum operating temperature of 0 °C and a maximum of 125 °C. Its polarity is positive.

Allied Electronics:
MC78L15ACDG, Single Linear Voltage Regulator, 100mA 15 V, 8-Pin SOIC

安富利:
Standard Regulator Pos 15V 0.1A 8-Pin SOIC N Rail

Chip1Stop:
Standard Regulator Pos 15V 0.1A 8-Pin SOIC N Rail

TME:
Voltage regulator; linear, fixed; 15V; 0.1A; SO8; SMD; Package: tube

Verical:
Standard Regulator Pos 15V 0.1A 8-Pin SOIC N Rail

Newark:
# ON SEMICONDUCTOR  MC78L15ACDG  Linear Voltage Regulator, 7815, Fixed, Positive, 23V To 35V In, 15V And 0.1A Out, SOIC-8

DeviceMart:
IC REG LDO 15V .1A 8-SOIC

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 15V 100mA 8-SOIC
