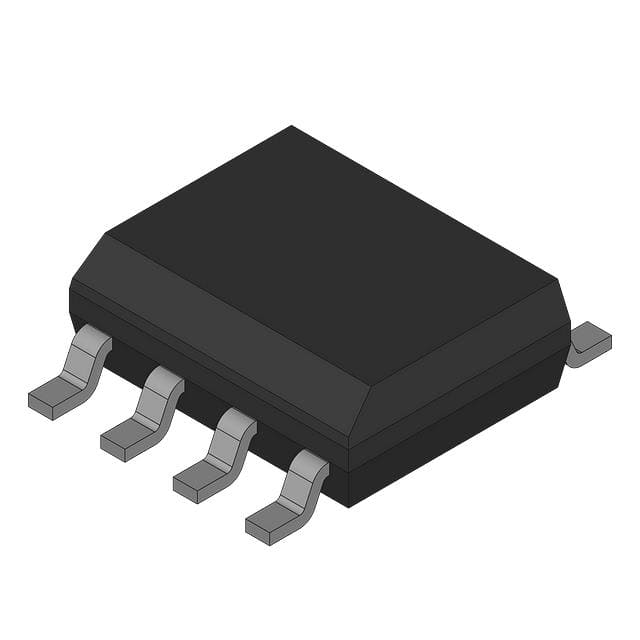

MC79L12ABDR2G

ON SEMICONDUCTOR  MC79L12ABDR2G  线性稳压器, 固定, 7912, -35V输入, -12V和0.1A输出, SOIC-8

是一款高性价比负压稳压器, -12V额定电压。该器件适用于多种应用, 可提供100mA电流。和高功率负压稳压器一样, 该器件具有过热关断, 电流限制功能, 非常坚固。在大多数应用中, 无需外部组件即可使用。该器件适用于卡上调节, 或其他需要中等电流负压稳压的应用。与电阻器/齐纳二极管方式相比, 该稳压器具有明显的优势。

.

无需外部元件

得捷:
IC REG LINEAR -12V 100MA 8SOIC

立创商城:
MC79L12ABDR2G

艾睿:
Use the standard MC79L12ABDR2G linear regulator from ON Semiconductor to maintain a constant output voltage. Its typical dropout voltage at current is 1.7@40mA V. This voltage regulation device&s;s single output can produce a current up to 0.1 A. With a voltage no larger than -35 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of -12 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 100mV and line regulation of 250mV. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is negative.

安富利:
LDO Regulator Neg -12V 0.1A 8-Pin SOIC N T/R

Chip1Stop:
LDO Regulator Neg -12V 0.1A 8-Pin SOIC N T/R

TME:
Voltage regulator; linear, fixed; -12V; 0.1A; SO8; SMD; -40÷125°C

Verical:
Standard Regulator Neg -12V 0.1A 8-Pin SOIC N T/R

Newark:
# ON SEMICONDUCTOR  MC79L12ABDR2G  LINEAR VOLT REG, 0.1A, -12V, SOIC-8

力源芯城:
0.1A负压稳压器

DeviceMart:
IC REG LDO -12V .1A 8-SOIC
