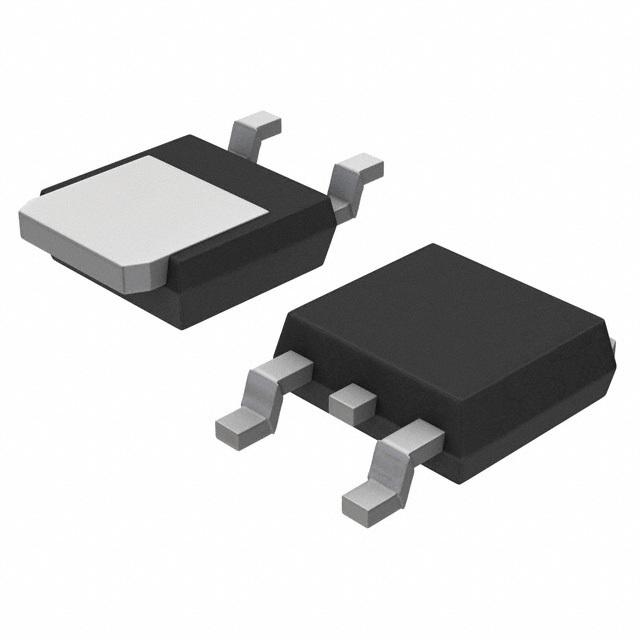

MC78M15CDTRKG

ON SEMICONDUCTOR  MC78M15CDTRKG  固定电压稳压器, LDO, 7815, 35V输入, 2V压差, 15V/500mA输出, TO-252-3 新

MC78M00/MC78M00A 线性稳压器，

**ON Semiconductor MC78M00**/**MC78M00** 线性稳压器是强大的设备，它组合了内部电流限制、热关闭以及输出晶体管安全操作区域保护。 它可用于在多种应用，包括本地和卡式电压稳压。 提供 5 V、8 V、12 V、15 V、18 V、20 V 和 24 V 型号，与适当的散热片配合使用时，输出电流高达 500 mA。

提供无铅封装

立创商城:
MC78M15CDTRKG

得捷:
IC REG LINEAR 15V 500MA DPAK

欧时:
### MC78M00/MC78M00A 线性稳压器，ON Semiconductor**ON Semiconductor MC78M00**/**MC78M00** 线性稳压器是强大的设备，它组合了内部电流限制、热关闭以及输出晶体管安全操作区域保护。 它可用于在多种应用，包括本地和卡式电压稳压。 提供 5 V、8 V、12 V、15 V、18 V、20 V 和 24 V 型号，与适当的散热片配合使用时，输出电流高达 500 mA。 提供无铅封装 ### 线性稳压器，On Semiconductor

贸泽:
Linear Voltage Regulators 15V 500mA Positive

e络盟:
固定电压稳压器, LDO, 7815, 35V输入, 2V压差, 15V/500mA输出, TO-252-3

艾睿:
This standard MC78M15CDTRKG linear regulator developed by ON Semiconductor keeps the power stable! Its typical dropout voltage at current is 2@350mA V. This voltage regulation device&s;s single output can produce a current up to 0.5 A. With a voltage no larger than 35 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 15 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 300mV and line regulation of 50mV. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This voltage regulation device has a minimum operating temperature of 0 °C and a maximum of 125 °C. Its polarity is positive.

Allied Electronics:
MC78M15CDTRKG, Single Linear Voltage Regulator, 700mA 15 V, 3-Pin DPAK

安富利:
Standard Regulator Pos 15V 0.5A 3-Pin2+Tab DPAK T/R

Chip1Stop:
LDO Regulator Pos 15V 0.5A 3-Pin2+Tab DPAK T/R

Verical:
Standard Regulator Pos 15V 0.5A 3-Pin2+Tab DPAK T/R

Newark:
# ON SEMICONDUCTOR  MC78M15CDTRKG  Fixed LDO Voltage Regulator, 7815, 35V in, 2V Dropout, 15V/500mA out, TO-252-3

力源芯城:
三端中电流正固定电压稳压器

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 15V 500mA DPAK-3

DeviceMart:
IC REG LDO 15V .5A DPAK
