极低的电源电流3引脚微处理器复位监控器 Very Low Supply Current 3-Pin Microprocessor Reset Monitor
For additional circuit stability, add "s microprocessor supervisory circuit, which can act as a backup processor in case the original fails, to your circuit. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This part has a minimum operating temperature of -40 °C and a maximum of 105 °C. This device has a minimum operating supply voltage of 1.2 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 2.63 V, with a minimum of 2.59 V and a maximum of 2.66 V.
无卤素状态 Halogen Free
输出电流 20 mA
针脚数 3
阈值电压 2.63 V
复位电压Min 2.59 V
复位电压Max 2.66 V
工作温度Max 105 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 3

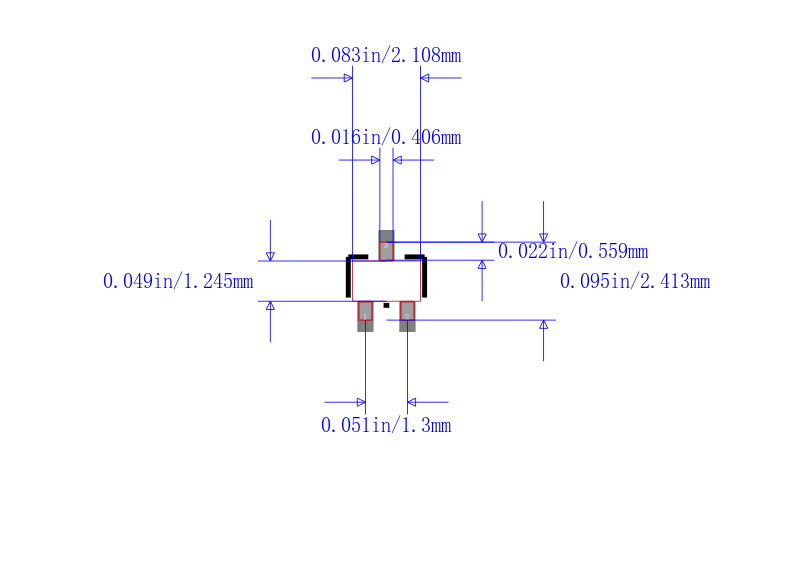

封装 SC-70-3
封装 SC-70-3
工作温度 -40℃ ~ 105℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Computers, Critical A Power Supply Monitoring, Battery Powered Equipment, Embedded Systems
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX803SQ263T1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MAX810SQ438T1G 安森美 | 类似代替 | MAX803SQ263T1G和MAX810SQ438T1G的区别 |
MAX809SQ293D2T1G 安森美 | 类似代替 | MAX803SQ263T1G和MAX809SQ293D2T1G的区别 |
CAT803RSDI-GT3 安森美 | 类似代替 | MAX803SQ263T1G和CAT803RSDI-GT3的区别 |
