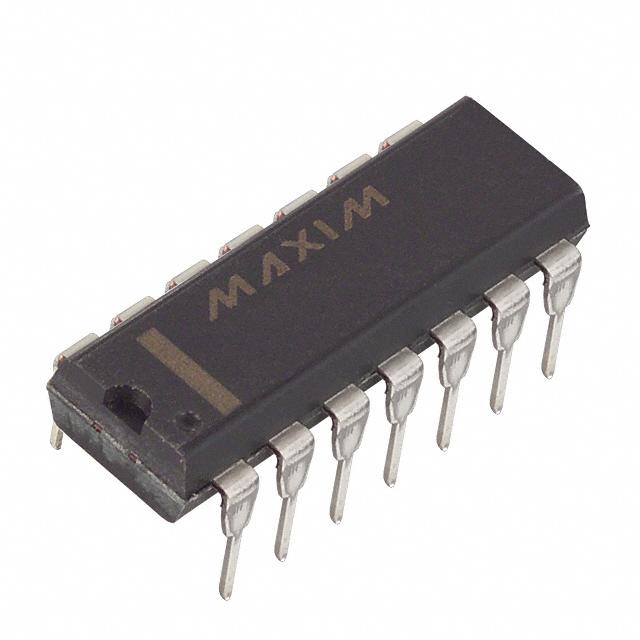

MAX944EPD+

MAXIM INTEGRATED PRODUCTS  MAX944EPD+  模拟比较器, 轨至轨, 高速, 4, 80 ns, 2.7V 至 5.5V, DIP, 14 引脚

The is a low power, 3V/5V, rail to rail, single supply comparator in 14 pin DIP package. This dual high speed comparator optimized for systems powered from a 3V or 5V supply and it has a propagation delay of 80ns, supply current of only 350µA per comparator. The input common mode range of the device extends beyond both power supply rails and the output pull to within 0.4V of either supply rail without external pull-up or pull down circuitry, making device ideal for interface with both CMOS and TTL logic. All input and output pins can tolerate a continuous short circuit fault condition to either rail, internal hysteresis ensures clean output switching even with slow moving input signals. The device is used in 3V/5V systems, threshold detectors/discriminators, line receivers, zero crossing detectors and sampling circuits.

.

Supply voltage range is 2.7V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

Low offset voltage is 1mV

.

Output swing 200mV of power rails

.

Rail to rail input voltage range

.

CMOS/TTL compatible outputs

.

Maximum common mode rejection ratio of comparator is 300µV/V

.

Maximum power supply rejection ratio of comparator is 300µV/V

.

Maximum power dissipation per comparator is 3.6mW
