MAX964EEE

单/双/四路，超高速， + 3V / 5V + ，超摆幅比较 Single/Dual/Quad, Ultra-High-Speed, +3V/+5V, Beyond-the-Rails Comparators

General Description

The MAX961–MAX964/MAX997/MAX999 are low-power, ultra-high-speed comparators with internal hysteresis.

These devices are optimized for single +3V or +5V operation. The input common-mode range extends 100mV Beyond-the-Rails™, and the outputs can sink or source 4mA to within 0.52V of GND and VCC. Propagation delay is 4.5ns 5mV overdrive, while supply current is 5mA per comparator.

Features

♦Ultra-Fast, 4.5ns Propagation Delay

♦Ideal for +3V and +5V Single-Supply Applications

♦Beyond-the-Rails Input Voltage Range

♦Low, 5mA Supply Current MAX997/MAX999

♦3.5mV Internal Hysteresis for Clean Switching

♦Output Latch MAX961/MAX963

♦TTL/CMOS-Compatible Outputs

♦270µA Shutdown Current per Comparator MAX961/MAX963/MAX964/MAX997

♦Available in Space-Saving Packages:

  5-Pin SOT23 MAX999

  8-Pin µMAX MAX961/MAX962/MAX997

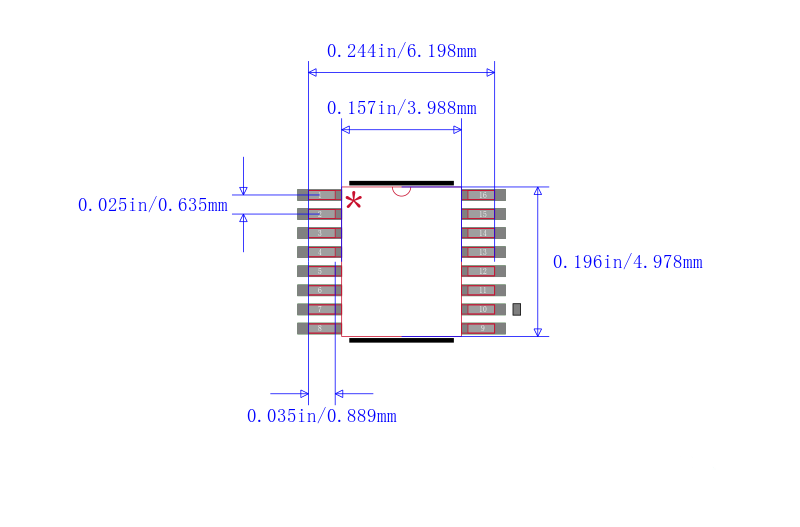

  16-Pin QSOP MAX964

Applications

Single 3V/5V Systems

Portable/Battery-Powered Systems

Threshold Detectors/Discriminators

GPS Receivers

Line Receivers

Zero-Crossing Detectors

High-Speed Sampling Circuits
